Zebra

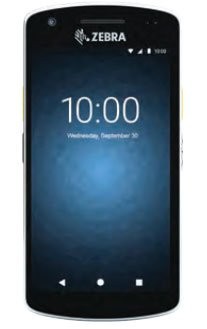

Zebra EC55 Mobile Computer, 3GB RAM, 32GB Flash, SE4100, 13MP Rear Camera, NFC, LTE WAN

SKU:

EC55AK-11B132-NA

Fitted with a removable 4180 mAh PowerPrecision lithium-ion battery rated for 10 hours standard or 13 hours with the extended option, the Zebra EC55AK-11B132-NA pairs that endurance with an SE4100 imager capable of omnidirectional 1D and 2D barcode scanning. The 5-inch HD LED display resolves at 1280 x 720 with 450 Nit brightness for outdoor readability, while the Qualcomm Snapdragon 660 octa-core processor running at 2.20 GHz is backed by 3 GB RAM and 32 GB of flash memory, expandable via microSD. A 13 Megapixel rear camera supports image-based workflows, and connectivity spans LTE WAN, IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc with 2x2 MU-MIMO, Bluetooth 5.0 BLE, NFC, GPS, and USB Type-C. The unit ships running Android 11 with Google Mobile Services and is upgradable to Android 14. IP67 sealing and a 4 ft./1.2 m drop rating to concrete per MIL-STD 810G across operating temperature, together with Corning Gorilla Glass protection, suit it to retail, healthcare, field service, courier, and direct store delivery operations. Weight is 6.46 oz, and the device is covered by a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra EC55 Mobile Computer is a compact, smartphone-style enterprise handheld designed to deliver reliable data capture and field mobility for retail, warehousing, logistics, field service and healthcare environments. Combining Zebra’s SE4100 1D/2D imager with a Qualcomm Snapdragon 660 processor and the Android platform (Android 11 with upgrade paths reported), the EC55 family supports fast barcode scanning, secure wireless communications and visual documentation via front and rear cameras. Multiple variants offer 3–4 GB RAM and 32–64 GB flash with microSD expansion, removable batteries (standard and extended capacities), IP67 sealing and a suite of connectivity options — enabling configurable, durable devices for shift-long productivity and centralized enterprise management.

Key Features

  • Compact enterprise design: Smartphone-size, handheld form factor provides pocketable mobility and comfortable all‑day use for frontline workers.
  • Integrated high‑performance scanning: SE4100 short/standard‑range 1D/2D imager enables fast, accurate barcode capture for inventory, POS and field workflows.
  • Robust wireless connectivity: LTE WAN (4G), Wi‑Fi (including 802.11 a/b/g/n/ac and 2x2 MU‑MIMO), Bluetooth 5.0, NFC and integrated GPS/GNSS keep teams connected and location‑aware.
  • Durability for real‑world use: IP67 sealing, Corning Gorilla Glass and multi‑drop/tumble specifications support reliable operation in demanding commercial and industrial environments.
  • Flexible power options: Removable batteries available in standard (~3060 mAh) and extended (~4180 mAh) capacities with fast‑charge support to cover single or extended shifts.
  • Enterprise Android platform: Android with Google Mobile Services and upgrade paths plus ample memory/storage options simplify app deployment and device lifecycle management.

Specifications

  • Product Name: Zebra EC55 Mobile Computer
  • Brand: Zebra
  • Category: Handheld Computers
  • Operating System: Android 11 (upgradeable to Android 14 reported; some SKUs reference Android 10)
  • Processor: Qualcomm Snapdragon 660 (SD660), octa‑core
  • CPU Speed: 2.2 GHz
  • RAM: 3 GB / 4 GB (variant dependent)
  • Flash Memory: 32 GB / 64 GB (variant dependent)
  • Expandable Storage: microSD support up to 128 GB
  • Display Size: 5.0 in
  • Display Resolution: 1280 x 720 px
  • Display Features: LED backlight; Corning Gorilla Glass; outdoor readable (select SKUs); up to 450 nits brightness on some SKUs
  • Scanner Module: SE4100 1D/2D imager
  • Scanner Range: Short / Standard (variant dependent)
  • Rear Camera: 13 MP
  • Front Camera: 5 MP
  • Connectivity: Wi‑Fi, Bluetooth 5.0, Cellular (LTE/4G), GPS/GNSS (A‑GPS, GLONASS, BeiDou, Galileo on some SKUs), NFC
  • Wi‑Fi Standards: 802.11 a/b/g/n/ac (including enterprise variants and MU‑MIMO)
  • Cellular: LTE WAN (4G)
  • eSIM: Integrated eSIM reported on select variants
  • NFC Support: Integrated NFC (MIFARE, ISO 14443 A&B, FeliCa, ISO 15693, NFC Forum)
  • Battery Capacity: Standard 3060 mAh; Extended 4180 mAh (variant dependent)
  • Battery Removable: Yes
  • Ingress Protection Rating: IP67
  • Drop Resistance: ~4 ft (1.2 m) to concrete; MIL‑STD variants and higher drop spec with protective boot reported
  • Tumble Specification: Device and protective‑boot tumble ratings reported on select SKUs
  • Dimensions: Approx. 6.08 x 2.99 x 0.38–0.46 in (variants); metric dimensions reported for specific battery configurations
  • Weight: Approx. 6.10–6.46 oz (variant dependent); some SKUs list 173–183 g
  • Form Factor: Handheld / phone‑size
  • Durability: Commercial / Retail / Industrial (variant dependent)
  • Additional Features: Virtual keypad options, USB‑C / 2‑pin or 8‑pin back connector options, PTT audio and enterprise sensors (accelerometer, gyroscope, light, proximity) on select models

Main Features

  • RFID: Yes

  • Operation System: Android

  • Rugged: Commercial

  • Equipment Format: Phone

  • IP Rating: IP67

  • GPS: Yes

  • Range: Short Range

  • Connection: 4G, USB, NFC

  • Pin: 2

  • Keyboard: 53 Key Virtual Terminal

  • Camera: 13MP Rear Facing Camera

  • Included Battery: Yes

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 2D
  • 1D
Scan Engine Model SE4100
Image Sensor Type Imager
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • eCompass
  • Motion Sensor
  • Gyroscope
  • Accelerometer
  • Proximity
Brightness 450 Nit
Features
  • Gorilla Glass
  • Drop Resistant
  • Water Resistant
Drop Specification

4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature
Processor & Chipset
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 3 GB
Flash Memory 32 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 5"
Screen Mode HD
Screen Resolution 1280 x 720
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 BLE
Near Field Communication (NFC) Yes
Cellular Data Connectivity Technology
  • LTE
  • UMTS
GPS Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Camera Yes
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android 11
Upgradable Operating System Android 14
Power Description
Power Source Battery
Battery Information
Battery Capacity 4180 mAh
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature 14°F (-10°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Rugged Yes
Height 0.5"
Width 3"
Length 6.1"
Weight (Approximate) 6.46 oz
Miscellaneous
Package Contents

EC55 Handheld Terminal

Battery
Application/Usage
  • Retail
  • Healthcare
  • Field Sales/Service
  • Courier Service
  • Direct Store Delivery (DSD)
Ingress Protection (IP) Rating IP67
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
FAQs
ico-plus ico-minus
What ingress protection rating does the Zebra EC55 carry, and is it suitable for wet or dusty environments?
The Zebra EC55 is rated IP67, meaning it is sealed against dust ingress and can withstand temporary immersion in water, making it appropriate for retail, warehousing and field service environments where exposure to moisture and particulates is common.
Which barcode scanner engine does the Zebra EC55 use, and what symbologies does it support?
The EC55 uses Zebra's SE4100 imager, which reads both 1D and 2D barcode symbologies, covering the broad range of label types used in inventory, point-of-sale and field-service workflows.
What wireless connectivity options are built into the Zebra EC55?
The EC55 includes Wi-Fi (802.11 a/b/g/n/ac with 2x2 MU-MIMO), Bluetooth 5.0, LTE/4G cellular, NFC (supporting MIFARE, ISO 14443 A&B, FeliCa, ISO 15693 and NFC Forum), and integrated GPS/GNSS, giving teams flexible options for both local and wide-area connectivity.
What processor and operating system power the Zebra EC55?
The EC55 runs on a Qualcomm Snapdragon 660 octa-core processor clocked at 2.2 GHz and ships with Android 11, with upgrade paths to Android 14 reported for the platform.
Can the Zebra EC55's storage be expanded beyond its built-in flash memory?
Yes, the EC55 supports microSD expansion up to 128 GB, supplementing the internal flash memory available across the product family.
Is the battery in the Zebra EC55 user-removable, and what capacity options are available?
The EC55 uses a removable battery, available in a standard capacity of approximately 3060 mAh or an extended capacity of approximately 4180 mAh, with fast-charge support to help sustain productivity across single or extended shifts.
