Zebra

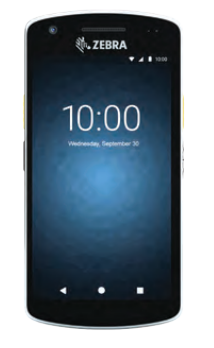

Zebra EC50 Mobile Computer Rugged, Android 10, 4GB RAM, 64GB Flash, SE4100, IP67, RFID

SKU:

KT-EC501SCRD-NA

Built for always-on work in retail floors, hospitality counters, healthcare service areas, and field mobility routes, the Zebra EC50 Rugged Android Scanner combines a phone-size form factor with rugged construction, Corning Gorilla Glass protection, and IP67 sealing in a lightweight device that is designed to be individually assigned and carried in a pocket or wearable accessory. Powered by Android 10 with a Snapdragon 660 octa-core processor, 4 GB RAM, 64 GB of storage, a 5-inch HD touchscreen, and an SE4100 2D omnidirectional imager, it also adds NFC, Wi-Fi, Bluetooth 5.0, USB-C, front and rear cameras, and support for payment options and RFID. A compact enterprise mobile computer with dependable all-day mobility.
Description
ico-plus ico-minus

The Zebra SlimPro Enterprise Mobile is a compact, enterprise-grade handheld designed for frontline data capture across retail, warehousing, logistics and field service operations. Part of the Zebra EC50 family, this mobile computer combines a smartphone-style 5.0-inch display with integrated SE4100 1D/2D imaging, Android-based software, and enterprise wireless connectivity to streamline inventory, POS and on‑site workflows. Built for all-day use, variants offer 3–4 GB RAM and 32–64 GB flash with microSD expansion, removable PowerPrecision batteries (standard and extended options), and IP67 sealing for reliable operation in demanding environments, delivering fast scanning, secure communications and extended runtime for shift-long productivity.

Key Features

  • Integrated 1D/2D scanning: SE4100 imager provides reliable short-range capture for fast inventory and POS transactions.
  • Compact enterprise design: Thin, lightweight handheld form factor delivers smartphone-style comfort while meeting business durability needs.
  • Responsive platform: Qualcomm Snapdragon SD660/660 octa-core performance with Android and upgradable OS options supports smooth operations and app compatibility.
  • Robust connectivity: Wi‑Fi (802.11 a/b/g/n/ac with 2x2 MU‑MIMO), Bluetooth 5.0 and NFC enable secure data transfer and peripheral pairing.
  • Durability for daily use: IP67 sealing, MIL‑STD-810G commercial/industrial ratings and verified drop resistance help reduce downtime in tough environments.
  • Flexible power and storage: Removable PowerPrecision batteries (standard or extended) and microSD support provide extended runtime and expandable capacity to match workflows.

Specifications

  • Brand: Zebra
  • Product Family / Model: EC50 (Zebra SlimPro Enterprise Mobile)
  • Form Factor: Handheld
  • Processor: Qualcomm Snapdragon 660 (octa-core, ~2.2 GHz)
  • RAM: 3 GB / 4 GB
  • Flash Memory: 32 GB / 64 GB
  • Storage Expandable: Micro SD supported
  • Operating System: Android 10 / Android 11 (upgradeable to Android 14 in some variants) with GMS on applicable SKUs
  • Display Size: 5.0 in
  • Display Resolution: 1280 x 720 px
  • Display Type: Color HD, LED backlight (outdoor variants available)
  • Display Protection: Corning Gorilla Glass
  • Scanner Type: SE4100 imager (1D / 2D)
  • Scanner Range: Short Range
  • Code Type: 1D / 2D
  • NFC / Standards: Integrated NFC; MIFARE, ISO 14443 A&B, FeliCa, ISO 15693, NFC Forum (in supported variants)
  • Rear Camera: 13 MP (some variants include a 5 MP front camera)
  • Connectivity: 802.11 a/b/g/n/ac (Wi‑Fi 5) with 2x2 MU‑MIMO, Bluetooth 5.0 BLE, NFC
  • Battery Capacity: 3060 mAh (standard) / 4180 mAh (extended, in some variants)
  • Battery Type: Removable PowerPrecision Lithium‑ion
  • Battery Removable: Yes (removable in supported SKUs)
  • Ingress Protection: IP67
  • Durability / Drop Resistance: 4 ft (1.2 m) to concrete; MIL‑STD‑810G on applicable variants
  • Dimensions: ~6.08 x 2.99 x 0.38–0.46 in (varies by configuration)
  • Weight: ~6.10–6.46 oz (varies by configuration)
  • Back Connector / Connector Type: 2‑pin or 8‑pin back connector (model dependent)

Main Features

  • RFID: Yes

  • Operation System: Android

  • Rugged: Commercial

  • IP Rating: IP67

  • Range: Standard Range

  • Connection: WLAN/Wi-Fi, USB, NFC

  • Pin: 8

  • Camera: 13MP Rear Facing Camera + 5MP Front Facing Camera

  • Included Battery: Yes

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4100
Image Sensor Type Imager
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Proximity
  • Accelerometer
  • Gyroscope
Brightness 450 Nit
Features
  • Push-to-talk
  • Gorilla Glass
  • Water Resistant
Drop Specification

4 ft./1.2 m per MIL-STD-810G. With protective boot: 5 ft./1.5 m per MIL-STD-810G to concrete across operating temperature range
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Model SD660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 64 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 5"
Screen Mode HD
Screen Resolution 720 x 1280
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Near Field Communication (NFC) Yes
Camera
Front Camera Yes
Front Camera Resolution 5 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android
Power Description
Power Source Battery
Battery Information
Battery Capacity 3060 mAh
Environmental Conditions
Operating Temperature 14°F (-10°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Phone-size
Height 6.1"
Width 3"
Depth 0.4"
Miscellaneous
Package Contents
  • EC50 Handheld Terminal
  • Standard Battery
Application/Usage
  • Retail
  • Healthcare
  • Industrial
  • Direct Store Delivery (DSD)
  • Courier Service
  • Field Sales/Service
Ingress Protection (IP) Rating IP67
Environmentally Friendly Yes
Environmental Certification
  • RoHS
  • REACH
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mod-ec50-zebra-handheld-terminals-datasheet.pdf KT-EC501SCRD-NA Product document mod-ec50-zebra-handheld-terminals-user-manual.pdf KT-EC501SCRD-NA Product document ec50.pdf MOD-EC50
FAQs
ico-plus ico-minus
What barcode scanning capability does the Zebra EC50 offer, and how far can it read?
The Zebra EC50 uses an integrated SE4100 imager that reads both 1D and 2D barcodes at short range, making it well suited for inventory counts and point-of-sale transactions where items are presented close to the device.
How durable is the Zebra EC50 for warehouse or field service use?
The EC50 carries an IP67 ingress-protection rating and is rated to withstand drops of 4 ft (1.2 m) to concrete, with MIL-STD-810G compliance providing additional assurance for demanding daily environments.
What wireless connectivity options are built into the Zebra EC50?
The EC50 includes 802.11 a/b/g/n/ac Wi-Fi 5 with 2x2 MU-MIMO, Bluetooth 5.0 BLE, and integrated NFC supporting MIFARE, ISO 14443 A and B, FeliCa, ISO 15693, and NFC Forum standards.
What memory and storage configurations are available on the Zebra EC50?
The EC50 is offered with either 3 GB or 4 GB of RAM paired with either 32 GB or 64 GB of flash storage, and all configurations support microSD cards for additional capacity.
Is the battery on the Zebra EC50 removable, and what capacity options exist?
Yes, the EC50 uses a removable PowerPrecision lithium-ion battery; a standard 3060 mAh pack is available, and an extended 4180 mAh option is offered on select configurations listed in the product family.
What display does the Zebra EC50 feature, and is it protected against scratches?
The EC50 has a 5.0-inch color HD display at 1280 x 720 resolution with LED backlighting, protected by Corning Gorilla Glass for everyday scratch and impact resistance.
