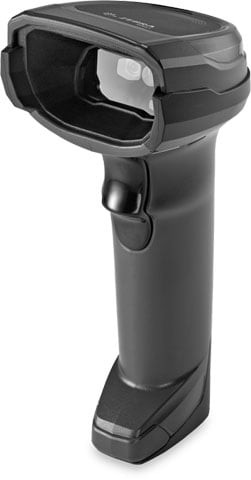

Zebra QuickScan DS8108 Barcode Scanner Area Imager, Standard Range, Checkpoint EAS, RS232, USB, Twilight Black
DS8108-SR00007ZCWW
Select model
The Zebra DS8108 Barcode Scanner is designed for unparalleled performance and efficiency in high-paced environments. This versatile handheld imager handles both 1D and 2D barcodes with ease, ensuring a seamless checkout process. Equipped with advanced technology, such as an 800 MHz microprocessor and PRZM Intelligent Imaging, the DS8108 delivers exceptional reading capabilities, even with damaged or faded barcodes. Thanks to its swappable power options and robust manageability tools, businesses can keep operations running smoothly while delivering an outstanding customer experience.
Key Features
- Unprecedented Barcode Performance: Capable of scanning a wide variety of barcodes in various conditions.
- Swappable Power Options: Choose between a PowerPrecision+ battery or a PowerCap capacitor for optimal flexibility.
- Superior Range: Scans up to 24 inches away, enhancing checkout speed in busy environments.
- Bluetooth Connectivity: Bluetooth 4.0 technology ensures reliable wireless communication.
- Future-Ready: Supports Digimarc digital watermark technology for faster checkout.
Specifications
- Physical Characteristics:
- Dimensions: 6.6 in. H x 2.6 in. W x 4.2 in. D
- Weight: Corded - 5.4 oz., Cordless - 8.3 oz.
- Performance:
- Light Source: (2) 645nm red LEDs with amber LED aiming pattern
- Image Sensor: 1280 x 960 pixels
- Operating Conditions:
- Temperature: 32° to 122° F
- Humidity: 5% to 95% RH, non-condensing
- Battery:
- PowerPrecision+: 2500 mAh, up to 65,000 scans per charge
- PowerCap: 2000 scans per charge, rapid recharge capability
Main Features
-
Rugged: Commercial
-
POS: Yes
-
Case color: Black
-
Range: Standard Range
-
Connectivity: Corded
-
Connection: RS232, USB
-
Scanner Capability: 2D, Imager
| Technical Information | |
|---|---|
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Barcode Symbology Supported |
1D:
2D:
|
| Image Sensor Type | Imager |
| Physical Characteristics | |
|---|---|
| Form Factor | Handheld |
| Product Color | Twilight Black |
| Height | 6.6" |
| Width | 2.6" |
| Depth | 4.2" |
| Weight (Approximate) | 5.40 oz |
ds8108.pdf DS8108-SR00007ZCWW
ds8108.pdf MOD-DS8108
