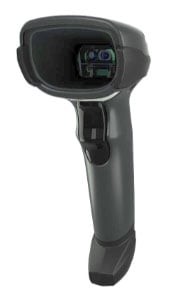

Zebra DS4608, 2D, High Density, RS232, USB, Kit (USB), Black

SKU:

DS4608-HD7U2600ZCW

The Zebra DS4608-HD7U2600ZCW is a high-density 2D imager configured for environments where small, dense, or difficult barcodes are the norm, including DotCode and Dotted DataMatrix codes readable through cellophane. Powered by an 800 MHz microprocessor and a megapixel sensor with PRZM Intelligent Imaging technology, it delivers a 28-inch scan range on UPC codes. Symbology coverage spans 1D formats — Code 39, Code 128, Code 93, UPC/EAN, GS1 DataBar, and Codabar/NW7 among them — along with 2D formats including PDF417, Aztec, DataMatrix, QR Code, MaxiCode, and Han Xin, plus OCR-A, OCR-B, MICR, and US Currency. The handheld Twilight Black chassis weighs 5.71 oz and measures 6.5 in tall, 2.6 in wide, and 3.9 in deep, connecting via USB with EAS support. A 5-year limited warranty covers the unit.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra DS4608 is a corded handheld 2D area imager designed for retail associates, POS operators, and front-line staff who need fast, dependable barcode capture across the entire store. Connecting via USB or RS-232, it integrates readily with existing POS and back-office systems without wireless infrastructure. Its high-resolution 1280 x 800 pixel megapixel sensor, 800 MHz processor, and Zebra's PRZM Intelligent Imaging technology decode a comprehensive range of 1D and 2D symbologies — including DotCode, DataMatrix, QR Code, and UPC/EAN — whether printed on labels, displayed on mobile screens, or obscured behind cellophane. IP52-sealed construction, a double-sealed optical system, a recessed scan window, and a design rated to survive multiple 6 ft (1.8 m) drops to concrete and 2,000 tumbles ensure consistent uptime in busy checkout, returns, and receiving environments. At 5.7 oz, the DS4608 is lightweight enough for extended handheld use, and it supports automatic handheld-to-presentation-mode switching when placed in an optional stand.

Main Features

  • Case color: Black

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Barcode Symbology Supported 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Han Xin
  • Postal Codes
  • SecurPharm
  • DotCode
  • Dotted DataMatrix
OCR:
  • OCR-A
  • OCR-B
  • MICR
  • US Currency
Image Sensor Type Imager
Interfaces/Ports
Host Interface
  • EAS
  • USB
Physical Characteristics
Form Factor Handheld
Product Color Twilight Black
Height 6.5"
Width 2.6"
Depth 3.9"
Weight (Approximate) 5.71 oz
Warranty
Limited Warranty 5 Year
Documents
ico-plus ico-minus
Product document ds4600-series.pdf DS4608-HD7U2600ZCW  (PDF)
FAQs
ico-plus ico-minus
What barcode types can the Zebra DS4608 Scanner read?
The DS4608 reads 1D and 2D symbologies, including UPC/EAN, Code 39, Code 128, DataMatrix, DotCode, Dotted DataMatrix, PDF417, QR Code, Aztec, and more, plus OCR formats such as OCR-A, OCR-B, MICR, and US Currency.
Which host interfaces does the Zebra DS4608 Scanner support for POS and back-office integration?
It supports USB, RS-232, RS-485, Keyboard Wedge, and TGCS (IBM) 46XX, and the scanner automatically detects the host interface type at connection.
How rugged is the Zebra DS4608 Scanner for busy retail environments?
It carries an IP52 ingress protection rating, is designed to withstand multiple drops from 6 ft (1.8 m) to concrete, and survives 2,000 tumbles; the double-sealed optical system and recessed scan window add further protection against dust, liquid, smudges, and scratches.
What is the scan range of the Zebra DS4608 Scanner on standard retail barcodes?
On a UPC code at 13 mil (100%), the DS4608 standard-range variant decodes from near contact up to 28.0 in (71.1 cm), making it practical for scanning heavy or bulky items in a shopping cart without leaving the checkout.
What is the hardware warranty on the Zebra DS4608 Scanner?
The DS4608 is warranted against defects in workmanship and materials for five years from the date of shipment, subject to the terms of Zebra's hardware warranty statement.
What user feedback mechanisms does the Zebra DS4608 Scanner provide, and can it switch between handheld and hands-free modes?
The scanner provides a Direct Decode Indicator, good decode LEDs, and an adjustable beeper with selectable tone and volume; placing it in an optional presentation stand automatically switches it to hands-free presentation mode, with no manual setting changes required.
