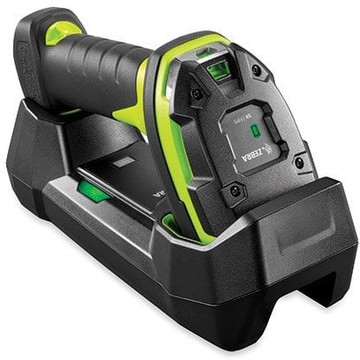

Zebra DS3678-SR Barcode Scanner Cordless, 2D, Standard Range, Bluetooth 4.0, IP67

The Zebra DS3678 handheld barcode scanner family delivers rugged, enterprise-grade 1D/2D data capture for demanding warehouse, logistics, manufacturing and field operations. Designed as cordless industrial imagers with extended and extra-extended range options, these scanners provide fast, reliable decoding of printed and on-screen barcodes across short and long distances while tolerating drops, tumbles, dust and water exposure. Multiple connectivity options and kit configurations ease integration into existing systems and speed deployment, while FIPS support, vibration feedback and high-capacity batteries help maintain secure, continuous operation in high-volume workflows.

Key Features

• Robust durability: Industrial-grade construction with high ingress protection and drop/tumble resistance minimizes downtime in harsh environments.
• Extended range imaging: Variants equipped with extended-range imagers capture 1D/2D barcodes from close range to long distances, increasing reach and flexibility on large sites.
• Flexible connectivity: Bluetooth wireless mobility plus RS232 and USB (and Ethernet via adapter on some kits) enable easy integration with diverse host systems.
• Enterprise-ready security & management: FIPS-capable models and Zebra DataCapture DNA support secure deployments and centralized device management.
• Long battery endurance: High-capacity, rechargeable batteries and high scans-per-charge figures support extended shifts and heavy scanning workloads.

Specifications

• Brand: Zebra
• Product family: DS3678 Handheld Barcode Scanners
• Scanner types / capabilities: 1D, 2D; 2D imagers (area imager)
• Imager models (examples): SE4850, SE58 (SE5800)
• Range types / maximum range (examples): Extended Range; up to 105 ft (approx. 32 m) depending on variant
• Connectivity / interfaces: Bluetooth, RS232, USB (Ethernet via adapter on select kits)
• Ingress protection: IP65 / IP67 / IP68 (varies by model)
• Battery capacity (example): 3100 mAh
• Scans per charge (example): up to 80,000–100,000 scans per charge (model dependent)
• Operating temperature: -20 to 50 °C
• Sensor resolution (example): 1280 x 800 px
• Minimum print contrast: 15%
• Drop / tumble ratings (examples): drop resistance up to 10 ft (3 m) and tumble ratings to 7,500 cycles on select models
• Decode capability: 2D (QR, Data Matrix, PDF417, Aztec) and 1D symbologies
• Security: FIPS support available on compliant variants
• Included kit components (example): scanner, USB cable, cradle, power supply, power cord (kit-dependent)
