Zebra

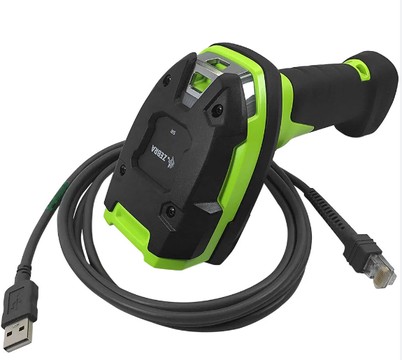

Zebra DS3608-HD, 2D, High Density, RS232, USB, Kit (USB)

SKU:

DS3608-HD3U4602VZW

The Zebra DS3608-HD3U4602VZW is a corded, handheld high-density area imager configured for USB connectivity, with the USB cable sold separately. Weighing 10.90 oz in its Industrial Green chassis — 7.3 inches tall, 3 inches wide, and 5.2 inches deep — it targets electronics manufacturing and similar environments where small, dense barcodes on components demand reliable capture. The imager reads both 1D and 2D symbologies, covering Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32 on the 1D side, alongside PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR, Aztec, MaxiCode, Composite Codes, TLC-39, Chinese Sensible (Han Xin), and Postal Codes in 2D. The scanner belongs to Zebra's 3600 Series and is manufactured in China.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra DS3608-SR is a corded, ultra-rugged area-imager barcode scanner built for industrial and commercial environments where durability and consistent read performance are non-negotiable. Designed for warehouse, manufacturing, and delivery operations, it captures both 1D and 2D barcodes — including direct part marks — from near contact up to 60" away, even on damaged, dirty, or poorly printed labels. Its IP65- and IP67-rated housing is dustproof, sprayproof, and waterproof, and it withstands multiple 8.0 ft./2.4 m drops to concrete. The scanner connects via USB, serial, Ethernet, or Bluetooth interfaces, integrating cleanly into existing host systems. Operating across -22°F (-30°C) to 122°F (50°C), it performs reliably in extreme environments, including cold storage. A 36-month limited warranty underscores its long-term value for demanding workflows.

Main Features

  • Rugged: Industrial

  • Range: Standard Range

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
Image Sensor Type Imager
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Product Color Industrial Green
Height 7.3"
Width 3"
Depth 5.2"
Weight (Approximate) 10.90 oz
Miscellaneous
Additional Information

USB Cable separate
Country of Origin China
Documents
ico-plus ico-minus
Product document ds36xx-hd.pdf DS3608-HD3U4602VZW  (PDF)
FAQs
ico-plus ico-minus
What barcode types and symbologies can the Zebra DS3608-SR read?
The DS3608-SR reads both 1D and 2D barcodes. Supported 1D symbologies include Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32 (Italian Pharma). Supported 2D symbologies include PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), and Postal Codes.
How rugged is the Zebra DS3608-SR, and what ingress protection rating does it carry?
The DS3608-SR is IP67-rated, making it dustproof and waterproof, and it withstands multiple drops of up to 2.4 m onto concrete. It is also rated for 7,500 tumbles, making it suitable for demanding industrial and warehouse environments.
Which host interfaces does the Zebra DS3608-SR support for integration into existing systems?
The DS3608-SR supports USB, RS232, Keyboard Wedge, and Industrial Ethernet (EtherNet/IP, Profinet, Modbus TCP, and standard TCP/IP), allowing straightforward integration into a wide range of existing host systems without third-party conversion equipment for Industrial Ethernet connections.
Can the Zebra DS3608-SR read direct part marks and multiple barcodes at once?
Yes, the DS3608-SR is DPM-capable and can capture direct part marks in addition to standard label-printed barcodes. Its multi-code capture feature processes up to 20 barcodes simultaneously in a single trigger pull.
What industries and workflows is the Zebra DS3608-SR designed for?
The DS3608-SR is designed for industrial and commercial environments including warehouse receiving, manufacturing production lines, retail backrooms, and other high-traffic workflows where consistent first-pass read rates and durable construction are critical.
What is the warranty coverage on the Zebra DS3608-SR scanner?
The DS3608-SR scanner and cradle are warranted against defects in workmanship and materials for thirty-six (36) months from the date of shipment, subject to the terms of Zebra's hardware warranty statement.
