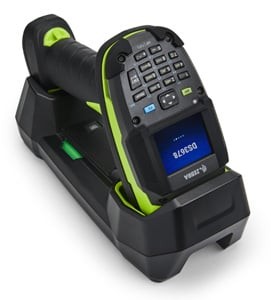

Zebra DS3678-KD Barcode Scanner Cordless, Keypad & Display, High Performance, 1D/2D, Industrial Green

SKU:

DS3678-HP3U4212SKW

Ultra-Rugged Scanners, Zebra DS3600-KD, DS3678-HP Rugged FIPS Vibration, Keypad and Display Standard Cradle Kit: DS3678-HP2F003VKWW Scanner, CBA-U42-S07PAR Shielded USB Cable, STB3678-C100F3WW Cradle, PWR-BGA12V50W0WW Power Supply, CBL-DC-451A1-01 DC Cord, 23844-00-00R AC Cord
Description
ico-plus ico-minus

The Zebra DS3600-KD Ultra-Rugged Scanner is engineered for relentless performance in demanding environments, offering both a keypad and a vibrant color display for extraordinary versatility. With its indestructible design, it can withstand drops from up to 10 ft./3 m and 7,500 tumbles, making it perfect for warehouses, retail, and manufacturing operations. Capture barcodes from as far as 7 ft./2.1 m and easily input additional data, enhancing productivity and accuracy with every scan. The DS3600-KD combines superior robustness with innovative features to simplify your workflow and boost operational efficiency.


Key Features
  • Ultra-Rugged Design: Built to withstand the most challenging conditions with an IP65/IP68 rating.
  • High-Speed Scanning: Captures 1D and 2D barcodes from up to 7 ft.
  • Ergonomic Keypad: Features a backlit keypad for one-handed operation.
  • Pre-Built Applications: Ready to use out of the box to streamline tasks.
  • PowerPrecision+ Battery: Supports over 60,000 scans on a single charge.

Specifications
  • Dimensions: 7.5 in. H x 3.1 in. W x 5.6 in. D
  • Weight: 18 oz. (includes battery)
  • Input Voltage Range: 4.5 VDC min., 5.5 VDC max.
  • Display: 2.0 in. QVGA color display, LED backlit
  • Battery: 3100 mAh Li-Ion, 60,000+ scans per charge
  • Operating Temperature: -4°F to 122°F
  • Environmental Sealing: IP65 and IP68 rating
  • Connectivity: Bluetooth Class 1, USB, RS232

Main Features

  • Rugged: Industrial

  • Case color: Green

  • IP Rating: IP67

  • Range: Advance Range

  • Connectivity: Cordless

  • Connection: Bluetooth

  • Scanner Capability: 2D, Imager

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D :
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
2D :
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
Light Source LED
Image Sensor Type Imager
Scanner Range Short Range
Scanning Distance 80"
Display Screen Yes
Number of Keys 19
Keypad Type Alphanumeric
Cable Type Included USB
Stand Included Yes
Field of View (Horizontal) 31°
Field of View (Vertical) 23°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 108000 lux
Drop Specification Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature
Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 7.5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Interfaces/Ports
Host Interface
  • USB
  • Serial
  • Keyboard Wedge
  • Ethernet
  • PROFINET
Power Description
Power Supply Included Yes
Battery Information
Battery Included Yes
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Green
Product Color Industrial Green
Height 7.5"
Width 3.1"
Depth 5.6"
Weight (Approximate) 1.12 lb
Miscellaneous
Ingress Protection (IP) Rating
  • IP65
  • IP68
Application/Usage
  • Warehouse
  • Distribution
  • Retail
  • Manufacturing
  • Asset Tracking
  • Inventory
  • Picking
  • Packing
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Documents
ico-plus ico-minus
Product document ds3600-kd.pdf DS3678-HP3U4212SKW Product document ds3600-kd.pdf MOD-DS3600-KD Product document ds3600-xr.pdf MOD-DS3600-KD
