Zebra

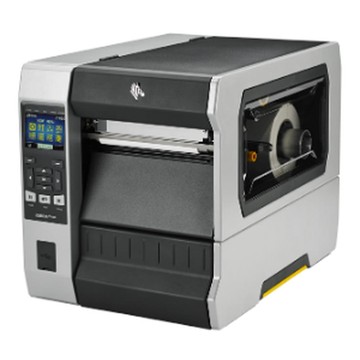

ZEBRA AIT, CUSTOM, CALL FOR QUOTE, BUNDLE, ZT62063-T2E01078, 3M ZT620; 6", 300 DPI, EURO AND UK CORD, SERIAL, USB, GIGABIT ETHERNET, BLUETOOTH 4.0, USB HOST, REWIND, COLOR, ZPL

SKU:

DS-ZT678P1101028

DS-ZT678P1101028 is configured with both a rewind and a cutter, making it a dual-handling thermal transfer unit within Zebra's ZT620 family that ships with EU and UK power cords. It prints monochrome labels at 300 dpi and up to 12 in/s across a 6.61-inch print width, with maximum label width reaching 7.01 inches and print runs extending to 12.50 ft. Media up to 1.97 mil thick loads on rolls to 7.99 inches in diameter, with transmissive and reflective dual sensors covering die-cut, continuous, notch and black mark stock. Connectivity spans serial, USB, USB Host, Gigabit Ethernet, Bluetooth, Wireless LAN and RFID, backed by 1 GB of onboard memory. A 4.3-inch LCD touchscreen supports daily operation, while ZPL, ZPL II and XML emulation and Link-OS ensure broad system compatibility. The 57.40 lb chassis operates between 40°F (4.4°C) and 104°F (40°C) at 20% to 85% relative humidity, and the unit carries Energy Star qualification.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra ZT620 is a heavy-duty industrial thermal transfer label printer designed for procurement and IT teams running high-volume, mission-critical labeling operations in manufacturing, transportation and logistics, retail distribution, and healthcare environments. Built on an all-metal frame, it delivers monochrome thermal transfer printing at speeds up to 12 ips (305 mm/s) and resolutions up to 300 dpi, handling media widths from 2.0 in. to 7.1 in. on rolls up to 8.0 in. in diameter. A 4.3-inch full-color touchscreen simplifies operator control and status monitoring, while Gigabit Ethernet, Bluetooth, USB, and serial connectivity ensure straightforward integration with existing enterprise systems. Running on the Link-OS platform, the ZT620 supports ZPL, ZPL II, and XML emulations, and is Energy Star qualified for cost-conscious operations.

Main Features

  • Equipment Format: Industrial

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document ca8caf27f0203fac174d12037698d5ca.pdf DS-ZT678P1101028  (PDF) Product document mod-zt620-zebra-label-printer-user-manual.pdf DS-ZT678P1101028  (PDF)
FAQs
ico-plus ico-minus
What print resolution options does the Zebra ZT620 support?
The Zebra ZT620 supports 203 dpi as standard and 300 dpi as an optional upgrade. The 600 dpi option available on the ZT610 is not available on the ZT620.
How fast can the Zebra ZT620 print, and does speed change with resolution?
The ZT620 reaches a maximum print speed of 12 ips (305 mm/s) at 203 dpi and 8 ips at 300 dpi.
What connectivity interfaces are built into the Zebra ZT620?
Standard interfaces include USB 2.0, RS-232 Serial, Gigabit Ethernet, and Bluetooth 4.0. Two open communication slots allow field installation of additional cards such as 802.11ac or 802.11ax Wi-Fi, parallel, Ethernet, and applicator interface options.
What media widths and roll sizes does the Zebra ZT620 accommodate?
The ZT620 accepts media widths from 2.0 in. to 7.1 in. for tear and cutter configurations, and 2.0 in. to 6.75 in. for peel and rewind configurations, with a maximum media roll diameter of 8.0 in. on a 3 in. core.
Which industries and applications is the Zebra ZT620 designed for?
The ZT620 targets manufacturing (work-in-process, product ID, package labeling), transportation and logistics (shipping, receiving, compliance labeling), retail distribution centers, and healthcare (laboratory, blood bank, pharmacy, and asset tracking labels).
What optional finishing modules and RFID capabilities are available for the Zebra ZT620?
Available media-handling options include a rewind module, a front-mount guillotine cutter with catch tray, and a peeler. An RFID module supporting UHF EPC Gen 2 V2.1, ISO/IEC 18000-63, and RAIN RFID protocols is also field-installable on the ZT620.
