Zebra

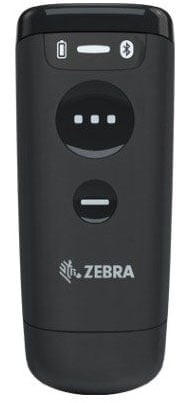

Zebra CS6080 Cordless, 2D, Standard Range, Bluetooth, Kit (Lanyard), Black

SKU:

CS6080-SR40000TZVW

Configured as a cordless Bluetooth kit with lanyard, the Zebra CS6080-SR40000TZVW runs on a 745 mAh Li-Polymer battery delivering up to 18 hours of operation per charge, with a full recharge in 6 hours. Its megapixel sensor reads 1D and 2D barcodes across an extensive symbology set — Code 39, Code 128, UPC/EAN, GS1 DataBar, PDF417, DataMatrix, QR Code, Aztec, and OCR-A/OCR-B among them — with a 45-degree horizontal by 34-degree vertical field of view, 360-degree roll tolerance, and motion tolerance of 20 in/s. Code 39 resolves down to 5 mil, while PDF417 reaches 6.7 mil and DataMatrix 10 mil, against a minimum print contrast of 20% and ambient light up to 108000 lux. IP65 sealing and drop resistance rated to 6.0 ft to concrete support use across retail, hospitality, transportation, logistics, and inventory environments. The scanner weighs 2.90 oz and operates from 32°F (0°C) to 122°F (50°C). REACH and RoHS compliance are standard, and the unit carries a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra CS60 Series Companion Scanner is a compact, convertible handheld barcode scanner built for retail, hospitality, logistics, inventory, and light manufacturing environments where a single device must adapt to multiple workflows. Its first-of-its-kind convertible design switches between corded and cordless operation and between handheld and hands-free presentation modes, eliminating the need to deploy separate scanners for different tasks. A 1280 x 960 area imager powered by Zebra's PRZM Intelligent Imaging captures 1D, 2D, and OCR codes — including damaged, low-contrast, and on-screen barcodes — at distances up to 26". Bluetooth and USB connectivity, a 745 mAh Lithium Polymer battery rated for up to 18 hours of runtime, and IP65-rated, drop-tested housing combine to deliver all-day reliability in demanding, fast-paced operations.

Main Features

  • Connection: Bluetooth

  • Scanner Capability: 1D, 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Base 32 (Italian Pharma)
  • Codabar/NW7
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • GS1 DataBar
  • I 2 of 5
  • Korean 3 of 5
  • MSI Plessey
  • UPC/EAN
2D:
  • Aztec
  • Composite codes
  • Datamatrix
  • Dotted datamatrix
  • Dotcode
  • Han xin
  • Maxicode
  • Pdf417
  • Micro pdf417
  • Postal codes
  • Qr code
  • Micro qr
  • Tlc-39
  • Securpharm
OCR:
  • OCR-A
  • OCR-B
  • MICR
  • US Currency
Depth of Field

Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Scanner Range Standard Range
Field of View (Horizontal) 45°
Field of View (Vertical) 34°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Motion Tolerance 20 in/s
Maximum Ambient Light 108000 lux
Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 6.7 mil
Illumination Type LED
Illumination Color White
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Power Description
Power Supply Included Yes
Input Current 400 mA
Standby Current 90 mA
Battery Information
Battery Chemistry Lithium Polymer (Li-Polymer)
Battery Capacity 745 mAh
Maximum Battery Run Time 18 Hour
Maximum Battery Recharge Time 6 Hour
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Midnight Black
Height 0.9"
Width 1.8"
Depth 4.3"
Weight (Approximate) 2.90 oz
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage
  • Retail
  • Hospitality
  • Transportation
  • Logistics
  • Light/Clean Manufacturing
  • Asset Tracking
  • Route Accounting
  • Inventory
  • Merchandising
  • Ticketing
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
