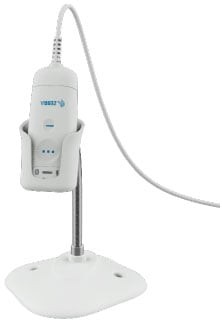

Zebra CS6080 Barcode Scanner Corded, USB, 1D/2D, Imager, White, FIPS

The Zebra HealthFlex Scanner (Zebra CS60-HC series) is a healthcare-focused handheld barcode scanner engineered for clinical, pharmacy and laboratory workflows where reliability, cleanliness and mobility are essential. Designed to operate as both corded and cordless and to work handheld or hands-free, it captures 1D and 2D barcodes quickly using a high-resolution area imager and PRZM Intelligent Imaging. The disinfectant-ready, crevice-free housing and IP65 sealing support routine cleaning in patient care areas, while Bluetooth and USB connectivity, long battery life and proven security options make it suitable for nurse-carry, point-of-care stations, medication dispensing and specimen tracking across hospital and clinic environments.

Key Features

• Convertible operation: Supports corded and cordless modes plus handheld and hands-free use to match changing clinical workflows.
• Healthcare-ready construction: Disinfectant-ready, crevice-free housing with IP65 sealing for frequent cleaning and infection-control environments.
• High-resolution imaging: PRZM Intelligent Imaging with a 1280 x 960 sensor and a 45 x 34° field of view for fast, accurate 1D and 2D capture.
• Wireless flexibility: Bluetooth 5.0 with NFC tap-to-pair and extended wireless range options simplify mobile deployments and pairing.
• Long runtime and fast charging: Up to 18 hours of battery life, thousands of scans per charge and support for inductive (Qi) charging or standard charging methods to minimize downtime.
• Security and compliance: FIPS 140-2 compliance and enterprise-friendly interfaces for regulated clinical and laboratory environments.

Specifications

• Brand: Zebra
• Product Reference / Model Family: Zebra CS60-HC (CS6080 series)
• Product Name: Zebra HealthFlex Scanner / Zebra CS60-HC Barcode Scanner
• Color / Finish: Healthcare White / White
• Scanner Type: Handheld 1D/2D area imager
• Imaging Technology: PRZM Intelligent Imaging
• Image Sensor Resolution: 1280 x 960 pixels
• Imager Field of View: 45 x 34 degrees (H x V)
• Supported 1D Symbologies: Codabar; Code 11; Code 128; Code 39; Code 93; GS1 DataBar; MSI; Plessey; UPC/EAN; Interleaved 2 of 5; Korean 3 of 5; Base 32 (Italian Pharma)
• Supported 2D Symbologies: PDF417; Composite Codes; TLC-39; Aztec; DataMatrix; MaxiCode; QR Code; Micro QR; Han Xin; MicroPDF417; Postal Codes
• Connectivity: Bluetooth, USB (including USB-C); NFC tap-to-pair
• Bluetooth Version: Bluetooth 5.0
• Wireless Range: Up to 100 m / Bluetooth class ranges reported (e.g., 330 ft class 1)
• Battery Capacity: 735–745 mAh (variant dependent)
• Battery Life: Up to 18 hours
• Reads per Charge: Approx. 13,000 scans
• Charging Method: Qi inductive charging supported (variant dependent); standard rechargeable LiPo
• Battery Technology: Lithium Polymer (LiPo)
• Weight: ~2.0 oz / 87 g (variant dependent)
• Dimensions (examples): 46 x 109 x 23 mm; 0.9 x 1.8 x 4.3 in (variant dependent)
• Drop Resistance: 6.0 ft / 1.8 m to concrete
• Ingress Protection (IP) Rating: IP65
• Disinfectant Ready Housing: Yes (disinfectant-ready plastics, crevice-free)
• Aimer / User Aids: Safe LED aimer, built-in lamp, night mode, haptic/vibration feedback
• Certification / Security: FIPS 140-2
• Typical Decode Range (example): 1.8 to 19.5 in (UPC 13 mil, variant dependent)
