Wasp 633809003448 Label Printers
633809003448
Select model

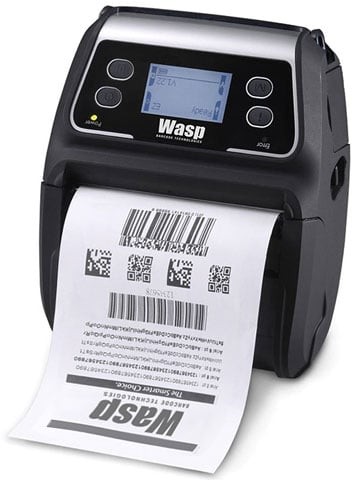

The Wasp WPL4M Portable Barcode Printer is the perfect solution for mobile workers seeking efficiency and reliability. Designed with a ruggedized exterior, this lightweight printer offers quick printing speeds of up to 4 inches per second and is equipped with generous memory and expansion options. With versatile connectivity options including USB, Bluetooth, and Wi-Fi, it ensures seamless integration into any operational workflow. Ideal for labels up to 4.09 inches wide and capable of handling various media types, the WPL4M meets the demands of any labeling task, ensuring your business stays productive on the go.
Key Features
- Print Speed: Up to 4 inches per second (102 mm)
- Memory: 16 MB Flash and 32 MB SDRAM
- Expandable Memory: microSD slot (up to 4 GB)
- Connectivity: USB 2.0, Bluetooth, and 802.11 a/b/g/n Wi-Fi
- Label Capacity: Up to 2.5 inches OD (67.3 mm)
- Easy Plug-N-Play: WPL firmware
Specifications
- Print Resolution: 203 DPI (8 dots/mm)
- Printing Method: Direct Thermal
- Max Print Width: 4.09 in (104 mm)
- Max Print Length: 90 in (2,286 mm)
- Physical Dimensions: 6.30 in (W) x 7.54 in (H) x 3.11 in (D)
Weight: 2.43 lbs. (1.1 kg) - Processor: 32-bit RISC CPU
- Battery: 7.2V DC, 5800 mAh Li-ion rechargeable battery
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Storage Temperature: -40°F to 140°F (-40°C to 60°C)
- Warranty: 2 Year Limited
Main Features
-
Rugged: Industrial
-
Equipment Format: Mobile
-
Connection: USB, Bluetooth
-
Printing Technology: Direct Thermal
| Technical Information | |
|---|---|
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 4 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 90" |
| Maximum Print Width | 4.09" |
| Application/Usage | Mobile |
| Print Technology | Direct Thermal |
| Memory | |
|---|---|
| Standard Memory | 32 MB |
| Interfaces/Ports | |
|---|---|
| USB | Yes |
| Network & Communication | |
|---|---|
| Bluetooth | Yes |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Maximum Roll Diameter | 1" |
| Maximum Label Width | 4.41" |
| Maximum Label Length | 90" |
| Power Description | |
|---|---|
| Power Source | Battery |
| Battery Information | |
|---|---|
| Battery Included | Yes |
| Physical Characteristics | |
|---|---|
| Form Factor | Portable |
| Height | 7.5" |
| Width | 6.3" |
| Depth | 3.1" |
| Weight (Approximate) | 2.43 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Cables Included | AC |
| Power Adapter Included | Yes |
| Platform Supported |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Warranty | |
|---|---|
| Limited Warranty | 2 Year |
