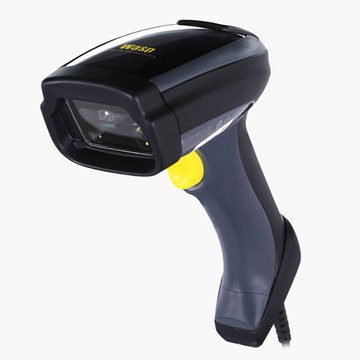

Wasp 633809002830 Handheld Barcode Scanners

The Wasp WDI7500 2D Rugged USB Barcode Scanner is engineered for efficient and reliable data collection across various environments. Its robust design features a durable casing with a drop rating of 6.6 feet and an IP65 sealing, making it ideal for demanding conditions. With the ability to scan both 1D and 2D barcodes omnidirectionally, users can enjoy enhanced accuracy thanks to the four-dot aiming system and the green spot technology that provides instant good-read feedback. Whether in retail, warehousing, or any industrial setting, the WDI7500 delivers consistent performance you can depend on.

Key Features

• Scans Popular 1D and 2D Barcodes
• Omnidirectional Code Reading Capability
• Durable 6.6ft (2m) Drop Spec and IP65 Rating
• Four Dot Aiming System for Accurate Scans
• Green Spot Technology for Good-Read Feedback

Specifications

• Optics:
  • Aiming: 630 - 680 nm VLD
  • Illumination: White LED 350 - 770 nm
  • Imager Sensor: 864 x 544
• Performance Depth of Field:
  • 4 mils: 6.0 to 17.0 cm / 2.3 to 6.7 in
  • 13 mils: 4.0 to 45.0 cm / 1.5 to 17.7 in
  • 20 mils: 4.0 to 55.0 cm / 1.5 to 21.6 in
  • 40 mils: 4.0 to 85.0 cm / 1.5 to 33.4 in
• Physical Characteristics:
  • Dimension: 8.3 x 4.3 x 2.9 in (21.2 x 11.0 x 7.4 cm)
  • Weight: 11.6 oz. (330 g.)
  • Color: Black & Yellow
• Electrical:
  • Input Voltage: 5 VDC +/- 10%
  • Working Current: 335 mA @ 10 VDC
  • Standby Current: 180 mA @ 10 VDC
  • Interface: USB
• Environment:
  • Operating Temperature: -4~122 °F (-20~50 °C)
  • Storage Temperature: -40~158°F (-40~70°C)
  • Humidity: 0%~95% (Non-condensing)
  • Drop Durability: 6.6 ft. (2.0 m)
  • Sealing: IP65
  • Ambient Light: 0 - 100,000 lux
• Symbologies: Auto discriminates all standard 1D and 2D codes, including GS1 DataBar™, QR Code, and more.
• ESD Protection: 20 kV
• Safety Approval: IEC62471 Class 1 LED
