Wasp

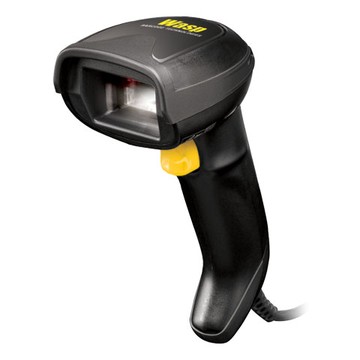

Wasp 633809007149 Handheld Barcode Scanners

SKU:

633809007149

Industrial Barcode Scanners, Wasp WDI4700, Corded, Digital Imager, Decodes 1D and 2D, postal and composite codes (PDF417), USB Cable, Black. Kit Includes: 2D Barcode Scanner, 6' USB Cable, Scanner Programming Guide, and 2 Year Warranty
Description
ico-plus ico-minus

The WDI4700 has motion-sensing technology that can detect the user"?s movements to switch automatically between presentation and handheld reading. The user is able to program the aimer and sensor according to their preferences. Because of its highly visible 4-Dot aimer, the WDI4700 can define exact reading zones to reduce accidental reads. In addition, its visible white illumination is easier on the eyes and reads colored labels better.

Main Features

  • Case color: Black

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D codes:
  • GS1 DataBar™ linear codes.
  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC) EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
  • Digimarc Barcodes
Light Source Laser
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Omni-directional
Scanning Distance 27.90"
Features
  • Scan Button
  • Notification LED
  • 3GL
  • Beep
  • Ergonomic Design
Cable Type Included USB
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification

6.0 ft. (1.8 m)
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 10 mil
Minimum Element Resolution (DataMatrix) 7.5 mil
Maximum Element Resolution (DataMatrix) 15 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Color Family Dual Color
Product Color
  • Black
  • Yellow
Durability Drop Resistant
Weight (Approximate) 5.68 oz
Miscellaneous
Package Contents
  • WDI4700 2D Barcode Scanner
  • 6' USB cable
  • Scanner programming guide
  • 2-year warranty (Optional WaspProtect warranty available)
Ingress Protection (IP) Rating IP52
Application/Usage
  • Industrial
  • Ticketing
  • Retail
  • Light/Clean Manufacturing
  • Healthcare
  • Transportation
  • Entertainment
  • Commercial Service
  • Hospitality
Country of Origin Vietnam
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
