Unitech

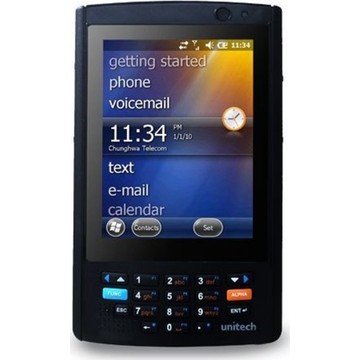

Unitech PA520 Standard, 1D, WEH6.5 Classic,BLUETOOTH,802.11 a/b/g/n,VGA, w/ Standard Battery

SKU:

PA520-9S60UVDG

Mobile Computer, Unitech PA520, Windows Embedded Handheld 6.5, Wi-Fi, Standard Range, 1D Laser, 512 MB RAM, 512 MB Flash, IP42, Phone-size, Numeric, VGA, Battery, USB, Power Adapter
Description
ico-plus ico-minus

The Unitech PA520 Mobile Computer is a robust and compact enterprise PDA designed to streamline your mobile workforce's effectiveness. Weighing only 220g and featuring a 3.5" QVGA/VGA touch screen, it is highly portable and user-friendly. With integrated Wi-Fi and Bluetooth connectivity, along with a powerful 1D/2D imager, RFID reader, and NFC support, this device enhances data input and scanning efficiency, making it perfect for sales automation and field service applications.


Key Features
  • Compact Design: Lightweight and pocket-sized form factor.
  • High-Performance OS: Runs on Microsoft Windows Handheld 6.5.
  • Multi-Functionality: Supports 1D/2D barcode scanning and optional RFID HF/NFC.
  • Advanced Connectivity: Bluetooth 2.1 + EDR and WLAN 802.11 a/b/g/n for seamless communication.
  • Durability: Designed for rugged use with IP42 sealing and drop resistance from 1.0m.

Specifications
  • CPU: TI AM3703 800MHz
  • Memory: 512MB Mobile DDR RAM, 512MB NAND Flash
  • Display: 3.5" Capacitive Multi-Touch screen, QVGA 240x320/VGA 480x640
  • Battery: 8.9 Watt-Hour 3.7V @ 2400mAh
  • Weight: 220g
  • Dimensions: 125.9mm x 25.0mm x 76.0mm
  • Environmental Sealing: IP42
  • Operating Temperature: 0°C to 50°C
  • Drop Test: 1.0 meter

Main Features

  • Operation System: Windows

  • Rugged: Industrial

  • Connection: Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Light Source Laser
Memory
Standard Memory 512 MB
Flash Memory 512 MB
Memory Card Supported microSD
Display & Graphics
Screen Size 3.5"
Screen Mode VGA
Screen Resolution 480 x 640
Display Screen Type LCD
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11n
Bluetooth Yes
Software
Operating System Microsoft Windows Embedded Handheld 6.5 Classic
Physical Characteristics
Height 5"
Width 3"
Depth 1"
Weight (Approximate) 8 oz
Miscellaneous
Package Contents
  • PA520 Rugged Enterprise PDA (Windows)
  • USB Cable
  • Power Adapter
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
