Unitech

HT630 Batch Portable Terminal (DOS, 2.5MB, RS232, LR CCD Scanner, 3.7V Lithium Ion Battery and AC Power Supply)

SKU:

HT630-VB0A1G

Unitech offers a Unitech offers a complete line of rugged mobile computers to help businesses become more efficient. Featuring all the computing, scanning and wireless capabilities demanded by today's mobile workforce, Unitech keeps you connected and productive from anywhere, at any time. line of rugged mobile computers to help businesses become more efficient. Featuring all the computing, scanning and wireless capabilities demanded by today's mobile workforce, Unitech keeps you connected and productive fro
Description
ico-plus ico-minus

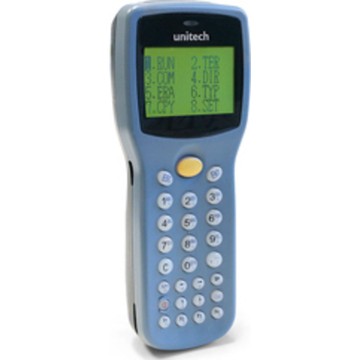

The Unitech HT630 Mobile Computer is a rugged and compact portable data terminal that offers high performance and flexible functionality at an affordable price. With its integrated barcode scanner and multiple memory configurations, it is perfect for businesses in the supply chain, retail, and field service markets. Designed for ease of use, the ergonomic build allows for single-handed operation, while the durable construction ensures it can withstand harsh environments.


Key Features:

  • IP54 rated against dust and moisture ingress
  • Survives multiple 1.5M drops to concrete
  • Weighs only 230g for comfortable use
  • Integrated laser or CCD scanner for 1D barcode reading
  • Ergonomically designed for single-handed operation
  • Multiple memory configurations up to 8.5MB RAM
  • 27-key alphanumeric phosphorescent keypad

Specifications:

  • Power Management:
    • Main Battery: Li-ion recharging, 900mAH
    • Backup Battery: 120mAH SRAM memory backup
    • Operating time: Over 12 hours on battery
  • Communication:
    • Interface: RS232 communication port
    • Protocols supported: Xon/Xoff or CTS/RTS
  • Physical and Environmental:
    • IP Rating: IP54
    • Drop Test: Survives from 1.2 meters to floor
    • Dimensions: 165(L)mm x 60(W)mm x 35(H)mm
    • Operating Temperature: -5°C to 50°C
    • Weight: 230g with battery pack

Main Features

  • Rugged: Industrial

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Batch
Image Sensor Type CCD
Light Source LED
Scanner Range Long Range
Barcode Symbology Supported
  • China Postal Code
  • Codabar
  • Code 39 Full ASCII
  • Code 39
  • Code 128
  • Code 93
  • EAN-13
  • EAN-8
  • EAN-128
  • Interleaved 2 of 5
  • ITF
  • UPC-E
  • UPC-A
Drop Specification 48" To Concrete
Memory
Standard Memory 2.50 MB
Flash Memory 256 KB
Display & Graphics
Screen Size 2.3"
Screen Resolution 128 x 64
Display Color Monochrome
Display Screen Type LCD
Number of Lines 8
Number of Characters 20
Keyboard/Keypad
Number of Keys 27
Keyboard Type Alphanumeric
Software
Operating System DOS
Battery Information
Battery Capacity 900 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Physical Characteristics
Height 6.6"
Width 2.6"
Depth 1.4"
Weight (Approximate) 8.60 oz
Miscellaneous
Package Contents
  • PT630D Portable Terminal
  • A/C Adapter
  • Battery
  • RS232 Communication Cable
  • JobGen Plus Software
Additional Information

Interface: RS232 Via Proprietary Cable
Certifications & Standards
  • CE
  • FCC
Environmentally Friendly Yes
Environmental Certification RoHS
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mod-ht630-unitech-handheld-terminals-datasheet.pdf HT630-VB0A1G Product document mod-ht630-unitech-handheld-terminals-user-manual.pdf HT630-VB0A1G Product document unitech-ht630.pdf HT630-VB0A1G Product document mod-ht630-unitech-handheld-terminals-datasheet.pdf MOD-HT630 Product document mod-ht630-unitech-handheld-terminals-user-manual.pdf MOD-HT630
