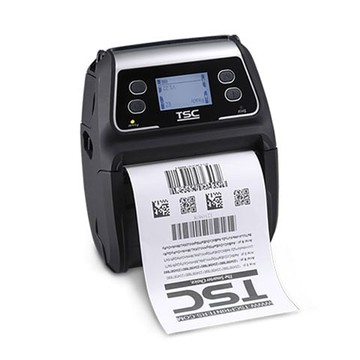

TSC Alpha-4L Mobile Barcode Printer 4", 203dpi, 4.3-inch Color LCD, Bluetooth, Wi-Fi

SKU:

99-052A013-0701

Mobile Label Printer, TSC Alpha-4L, Direct Thermal, 203 dpi, 4.09" Print Width, USB/Bluetooth (Supports Apple and Android), 4 ips, US, LCD Screen, 32MB Flash Memory, 16MB DRAM. Replaces (Part# 99-052A013-50LF)
Description
ico-plus ico-minus
TSC Alpha-4L Barcode Label Printer is the ideal portable printing solution, designed for a wide range of applications including retail, logistics, and inventory management. With its rugged, IP54-rated protective casing and durable construction, this compact thermal printer guarantees reliable performance in tough environments. The printer boasts high-speed printing at up to 102 mm per second, making it perfect for on-the-go label needs. Its extensive connectivity options, including Bluetooth and Wi-Fi, ensure seamless integration into your existing systems.
Key features:
  • Robust IP54-rated protective case for dust and water resistance.
  • Drop-resistant design that withstands 1.5 m (5 ft) without a case and 1.8 m (6 ft) with.
  • High-capacity 5800 mAh rechargeable Li-ion battery for extended use.
  • High-speed processor with fast print speeds up to 102 mm (4") per second.
  • Versatile connectivity options: USB 2.0, RS-232, Bluetooth, and 802.11 a/b/g/n.
  • 2-year standard warranty for peace of mind.

Specifications:
  • Resolution: 8 dots/mm (203 DPI)
  • Printing method: Direct Thermal
  • Max print speed: 102 mm (4") per second
  • Max print width: 104 mm (4.09")
  • Enclosure material: Plastic with rubber overmold
  • Physical dimensions: 160 mm (W) x 191.6 mm (H) x 79 mm (D)
  • Weight: 1.1 kg (2.43 lbs)
  • Drop specification: 1.5 m (5 ft) / 1.8 m (6 ft) with IP54 case
  • Max roll capacity: 67.3 mm (2.65") OD
  • Operating temperature: -10°C to 50°C (14°F to 122°F)
  • Storage temperature: -40°C to 60°C (-40°F to 140°F)
  • Battery: 7.2V DC, 5800 mAh Li-ion rechargeable

Main Features

  • Equipment Format: Mobile

  • Rugged: Industrial

  • DPI: 203 dpi

  • Connection: RS232, Serial, Ethernet, WLAN/Wi-Fi, Bluetooth, USB

  • Optional Upgrades: Liner take-up

  • Max Width: 4 mm

Documents
ico-plus ico-minus
Product document alpha-4l-2017.pdf 99-052A013-0701 Product document alpha-4l-2017.pdf MOD-ALPHA-4L
