Tripp-Lite

Tripp-Lite SMART750USB Racks

SKU:

SMART750USB

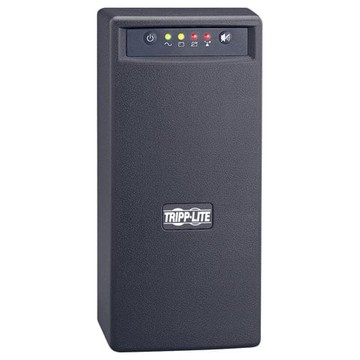

Tripp Lite UPS Smart 750VA 450W Battery Back Up Tower AVR 120V USB RJ45 - Tower - 4 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Tripp-Lite UPS and Power Supply products.
Technical Specifications
ico-plus ico-minus
Technical Information
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Dataline Protection RJ-45
Protection Type Surge
Cord Length 6 ft
Transfer Time 4 ms
Power Description
Load Capacity (VA) 750 VA
Load Capacity (Watt) 450 W
Input Voltage 120 V AC
Output Voltage 120 V AC
Waveform Type Pulse-width Modulated Sine Wave
Surge Energy Rating 510 J
Management
Alarm On Battery
Controls/Indicators
Status Indicators 4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"
Interfaces/Ports
USB Yes
Battery Information
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 3 Minute
Backup/Run Time (Half Load) 11 Minute
Battery Life 6 Year
Typical Battery Recharge Time 4 Hour
Environmental Conditions
Maximum Operating Temperature 122°F (50°C)
Physical Characteristics
Color Family Black
Product Color Black
Height 11"
Width 5.5"
Depth 7.5"
Form Factor Tower
Weight (Approximate) 17.40 lb
Miscellaneous
Package Contents
  • SMART750USB Standby UPS System
  • USB and telephone interconnection cables
  • Instruction manual with warranty information
Additional Information
  • SMART750USB line-interactive UPS system offers extended voltage regulation (AVR) and battery support as well as complete AC and dialup/DSL/ethernet line surge suppression
  • Supports entry level PC systems for up to 45 minutes during power failures to enable a safe system shutdown
  • Supports a max load of 750VA/450 watts for 5 minutes and a half load of 375VA/225 watts for 17 minutes
  • Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 83 volts without using battery power
  • Attractive black tower configuration
  • Includes 3 battery-supported outlets, plus 3 additional surge-only outlets, 6 foot AC line cord (all NEMA 5-15)
  • USB port enables unattended shutdown without data loss during extended power failures; includes USB cable
  • Built-in USB port supports on battery, low battery, power restored, AC line voltage, DC battery voltage and battery capacity messaging; interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
  • PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again (part #WATCHDOGSW)
  • Built-in dataline suppression jacks protect a single dialup phone / DSL line or network Ethernet line connection
  • Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
  • 750VA / 450 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
  • Supports battery replacement via built-in access panel
  • Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more
  • 2 year manufacturer's warranty
  • $200,000 Ultimate Lifetime Insurance (USA & Canada Only)
Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
Software Included PowerAlert Software
Recycled No
Assembly Required No
Country of Origin China
Warranty
Limited Warranty 3 Year
Additional Warranty Information

2 year warranty. $200,000 connected equipment insurance (USA & Canada Only).
