Tripp-Lite

Tripp-Lite N520-100M Accessories

SKU:

N520-100M

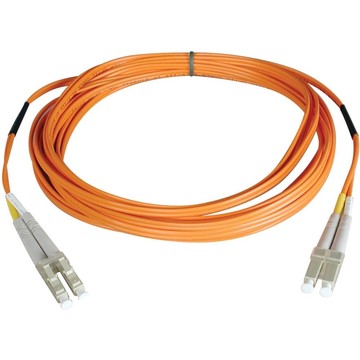

Cables, Connectors, and Adapters, Tripp-Lite, Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 100M (328'')
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
Cable Type Fiber Optic
Cable Characteristic Patch Cable
Fiber Optic Cable Core/Cladding Specification 50/125 µm
Cable Length 328.10 ft
Connector Type on First End LC - Male
Connector on First End Details 2 x LC - Male
Connector Type on Second End LC - Male
Connector on Second End Details 2 x LC - Male
Physical Characteristics
Color Family Orange
Product Color Orange
Jacket Material Polyvinyl Chloride (PVC)
Shipping Height 12"
Shipping Width 12"
Shipping Weight (Approximate) 3.50 lb
Miscellaneous
Package Contents
  • Fiber Optic Duplex Patch Cable
  • 100M Duplex MMF Cable LC/LC 50/125 Fiber
Additional Information
  • Use on fiber and fibre channel installations
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
  • Number of fibers: 2
  • Fiber type: all glass graded index
  • Primary coating diameter: 245+/-15 microns
  • Primary coating material: acrylate
  • Secondary coating diameter: 900+/-50 microns
  • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
  • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
  • Numeric apeture: .275 nominal
  • Proof test level: 100,000 PSI
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
  • Beveled edge on ends of glass makes insertion of plug a breeze
Certifications & Standards
  • FDDI
  • OFNR
Country of Origin China
Warranty
Limited Warranty Lifetime
