Tripp-Lite

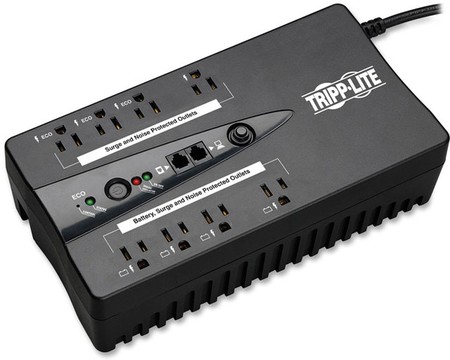

Tripp-Lite ECO550UPS Accessories

SKU:

ECO550UPS

Tripp Lite UPS 550VA 300W Eco Green Battery Back Up Compact 120V USB RJ11 - Desktop, Wall Mountable - 15 Hour Recharge - 1.20 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - 10 x NEMA 5-15R
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 10 x NEMA 5-15R
Number of Surge-only Outlets 5
Dataline Protection RJ-11
Protection Type
  • EMI / RFI
  • Brownout
  • Power Failure
Overload Protection Yes
Cord Length 6 ft
Transfer Time 6 ms
Phase Single Phase
Application/Usage
  • Retail
  • Hospital
  • Computer Peripheral
Power Description
Load Capacity (VA) 550 VA
Load Capacity (Watt) 300 W
Input Voltage 120 V AC
Output Voltage
  • 110 V AC
  • 115 V AC
  • 120 V AC
Output Frequency 60 Hz
Waveform Type Pure Sine Wave
Surge Energy Rating 316 J
Management
Alarm
  • Battery Fault
  • Overload
  • Low Battery
Controls/Indicators
Status Indicators

2 LED Indicator:

  • Line power
  • Battery power status

Main Power Switch Controls :

  • ON
  • OFF
  • SELF-TEST
  • ALARM CANCEL
  • Second switch enables "ECO" outlet switching
Interfaces/Ports
USB Yes
USB (HID Compliant) Port Yes
Battery Information
DC System Voltage 12 V DC
Battery Characteristics Valve-regulated
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 1.20 Minute
Backup/Run Time (Half Load) 5 Minute
Battery Life 6 Year
Typical Battery Recharge Time 6.50 Hour
Replaceable Battery Yes
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 133°F (56.1°C)
Maximum Storage Elevation 6561 ft
Sound Emission 40 dB
Thermal Dissipation 1.17 W
Physical Characteristics
Color Family Black
Product Color Black
Height 4.1"
Width 4.3"
Depth 7.3"
Form Factor Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate) 5.20 lb
Miscellaneous
Package Contents
  • ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS
  • USB Cable
  • Owner's Manual
    		•
    Additional Information
    • Keyhole mounting slots enable wall-mount installation
    • Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
    • Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher
    • Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decerases to 135V or lower
    • Basic desktop PCs for home/home-office use, network terminals, audio/video and home entertainment systems and other sensitive electronic devices
    • 550VA / 300 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 17 minutes
    Certifications & Standards

    Tested to :

    • UL1778 (USA)
    • CSA (Canada)
    • NOM (Mexico)
    • Class B (EMI)
    • FCC Part 68 / Industry Canada (telecommunication)
    Software Included PowerAlert software available via free download
    Recycled No
    Assembly Required No
    Energy Star Yes
    Country of Origin Vietnam
    Environmentally Friendly Yes
    Energy Efficiency Certification ENERGY STAR 2.0
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty 3 Year
    Additional Warranty Information

    2 year $100,000 connected equipment guarantee
