Description

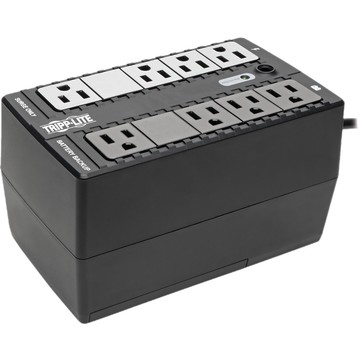

Products and parts from Tripp-Lite.
Technical Specifications
| Technical Information | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage |
|
| Power Description | |
|---|---|
| Load Capacity (VA) | 450 VA |
| Load Capacity (Watt) | 255 W |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Management | |
|---|---|
| Alarm |
|
| Controls/Indicators | |
|---|---|
| Status Indicators |
LED Indicators:
|
| Battery Information | |
|---|---|
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 1.50 Minute |
| Backup/Run Time (Half Load) | 6.90 Minute |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Thermal Dissipation | 3.84 W |
| Physical Characteristics | |
|---|---|
| Height | 4.1" |
| Width | 4.3" |
| Depth | 7.3" |
| Form Factor | Desktop/Wall Mountable |
| Weight (Approximate) | 3.96 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Country of Origin | Vietnam |
| Warranty | |
|---|---|
| Limited Warranty | 2 Year |
