Tripp-Lite

Tripp-Lite AVR900U Accessories

SKU:

AVR900U

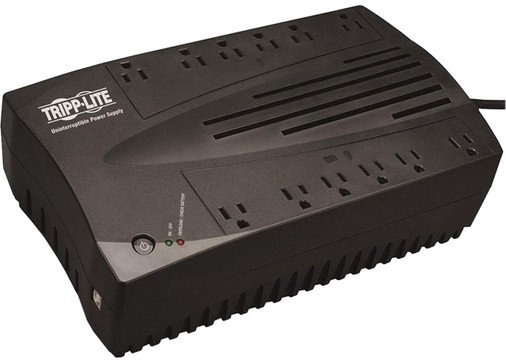

Tripp Lite UPS 900VA 480W Desktop Battery Back Up AVR Compact 120V USB RJ11 - Ultra-compact Desktop/Tower/Wall Mount - AVR - 8 Hour Recharge - 2.70 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - 12 x NEMA 5-15R
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
AVR Yes
AVR Range Boost +18% / Buck -15%
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 12 x NEMA 5-15R
Number of Battery & Surge Outlets 6
Number of Surge-only Outlets 6
Transfer Time 6 ms
EMI/RFI Noise Filter Yes
Phase Single Phase
Power Description
Load Capacity (VA) 900 VA
Load Capacity (Watt) 480 W
Input Voltage 120 V AC
Output Voltage
  • 110 V AC
  • 115 V AC
  • 120 V AC
Input Frequency 60 Hz
Output Frequency 60 Hz
Waveform Type Pulse-width Modulated Sine Wave
Surge Energy Rating 316 J
Management
Alarm
  • Battery Backup
  • Low Battery
  • Fault
  • Overload
  • Replace Battery
Controls/Indicators
Status Indicators

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
Interfaces/Ports
USB Yes
USB (HID Compliant) Port Yes
Battery Information
DC System Voltage 12 V DC
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 2.70 Minute
Backup/Run Time (Half Load) 10 Minute
Typical Battery Recharge Time 8 Hour
Replaceable Battery Yes
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Physical Characteristics
Height 4.1"
Width 7.5"
Depth 12"
Form Factor Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate) 16.50 lb
Miscellaneous
Package Contents
  • AVR 900VA Desktop UPS
  • Owner's manual
Additional Information
  • Appearance: All black ultra-compact housing

Output voltage regulation:

  • Sine wave 120V +14% / -12% (line mode)
  • PWM sine wave 115V +/-5% (battery mode)

Output frequency regulation:

  • Line Mode: Passes line frequency of 60Hz +/-10%
  • Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz
Certifications & Standards

UL Listed Certification
Software Included PowerAlert Software
Assembly Required No
Country of Origin Vietnam
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Additional Warranty Information

2 year warranty $100,000 Connected equipment guarantee
