Tripp-Lite

Tripp-Lite AVR550U Accessories

SKU:

AVR550U

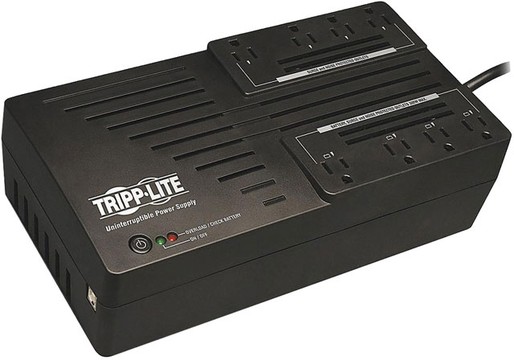

Tripp Lite UPS 550VA 300W Desktop Battery Back Up AVR Compact 120V USB RJ11 50/60Hz - Mini Desktop - 9 Hour Recharge - 2 Minute Stand-by - 110 V AC Input - 120 V AC Output - 8 x NEMA 5-15R
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
AVR Yes
AVR Range Boost +18% / Buck -15%
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 8 x NEMA 5-15R
Number of Battery & Surge Outlets 4
Number of Surge-only Outlets 4
Dataline Protection RJ-11
Cord Length 6 ft
Transfer Time 6 ms
EMI/RFI Noise Filter Yes
Phase Single Phase
Energy Saving Greater than 95% efficiency - GREEN UPS
Application/Usage
  • Printer
  • Speaker
  • Computer
  • Router
  • TV
  • Blu-ray Player
  • Gaming Console
  • ATM
  • Security System
  • Digital Signage
  • Media Center
  • Home/Office
  • Home Theater
Power Description
Load Capacity (VA) 550 VA
Load Capacity (Watt) 300 W
Input Voltage 120 V AC
Input Current 12 A
Output Voltage
  • 110 V AC
  • 115 V AC
  • 120 V AC
Input Frequency 60 Hz
Output Frequency 60 Hz
Waveform Type Pulse-width Modulated Sine Wave
Surge Energy Rating 316 J
Management
Alarm
  • Battery Backup
  • Low Battery
  • Overload
  • Replace Battery
  • Fault
Controls/Indicators
Status Indicators

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
Interfaces/Ports
USB Yes
USB (HID Compliant) Port Yes
Battery Information
DC System Voltage 12 V DC
Backup/Run Time (Full Load) 2 Minute
Backup/Run Time (Half Load) 9 Minute
Battery Life 6 Year
Typical Battery Recharge Time 8 Hour
Replaceable Battery Yes
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation 10000 ft
Physical Characteristics
Color Family Black
Product Color Black
Height 4.3"
Width 6.4"
Depth 12"
Form Factor Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate) 13.69 lb
Miscellaneous
Package Contents
  • Desktop/Wall Mount Battery Backup Outlets
  • USB cable
  • Owner's manual
Additional Information
  • Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher
  • High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less
  • Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
  • Switches: Combination power off / on / self-test push button switch
  • Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices.
  • WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
  • Supports entry-level PC systems up to 17 minutes during blackout conditions
  • Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation
  • 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets
  • 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power
  • 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support
  • HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
Certifications & Standards
  • Tested to UL1778 (USA)
  • cUL1778 (Canada)
  • NOM (Mexico)
  • FCC Class B (Emissions)
  • FCC Part 68
  • Industry Canada (Telecommunications)
Software Included PowerAlert UPS monitoring software
Recycled No
Assembly Required No
Country of Origin Vietnam
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year Lifetime
Additional Warranty Information

2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
