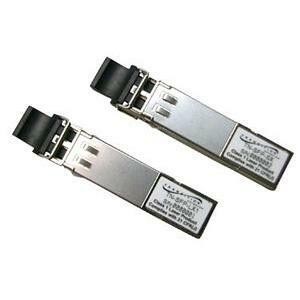

Transition TN-SFP-SX Transceiver Modules

SKU:

TN-SFP-SX

Transition Networks 1000BASE-SX Small Form Factor Pluggables (SFP) transceivers - 1 x 1000Base-SX
ico-puzzle-piece-02 This product is compatible with...
Prices could not be updated.
Description
ico-plus ico-minus
Transition Networks 1000BASE-SX Small Form Factor Pluggables (SFP) transceivers - 1 x 1000Base-SX
Technical Specifications
ico-plus ico-minus
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Total Number of Ports 1
Connector Type LC
Interfaces/Ports Details 1 x LC 1000Base-SX
Media & Performance
Media Type Supported Optical Fiber
Fiber Mode Supported Multi-mode
Maximum Distance Supported 0.55 km
Power Description
Input Voltage 3.3 V DC
Physical Characteristics
Form Factor Hot-pluggable
Height 0.3"
Width 0.5"
Depth 2.2"
Miscellaneous
Additional Information
  • Fiber Channel Switch Infrastructure
  • XDSL Applications
  • Metro Edge Switching
  • 850nm Wavelength
  • Compliant with Fiber Channel 1x SM-LC-L FC-PI
  • Min TX PWR: -9.5 dBm
  • Max TX PWR: -4.0 dBm
  • RX Sensitivity: -17.0 dBm
  • Max In PWR: -3.0 dBm
  • Link Budget: 7.5 dB
Compatibility
  • The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Certifications & Standards
  • IEEE 802.3 2003
  • ANSI X3.297-1997
  • IEEE 802.3z: Gigabit Ethernet

Compliance:

  • IEC-60825
  • FDA 21
  • CFR 1040.10 and 1040.11
Country of Origin Taiwan
TAA Compliant Yes
Warranty
Limited Warranty Lifetime
