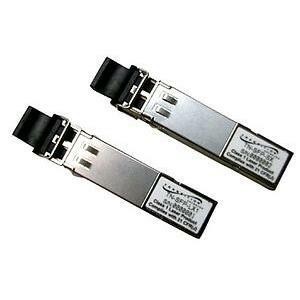

Transition TN-SFP-LX1 Wireless Adapters

SKU:

TN-SFP-LX1

Transition Networks 1000BASE-LX 1310nm(10 Km) SFP Module - 1 x 1000Base-LX
ico-puzzle-piece-02 This product is compatible with...
Prices could not be updated.
Description
ico-plus ico-minus
Transition Networks 1000BASE-LX 1310nm(10 Km) SFP Module - 1 x 1000Base-LX
Technical Specifications
ico-plus ico-minus
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Total Number of Ports 1
Connector Type LC
Interfaces/Ports Details 1 x LC 1000Base-LX
Media & Performance
Media Type Supported Optical Fiber
Fiber Mode Supported Single-mode
Maximum Distance Supported 32808.40 ft
Maximum Data Transfer Rate 1.25
Power Description
Input Voltage 3.3 V DC
Physical Characteristics
Form Factor Hot-pluggable
Height 0.3"
Width 0.5"
Depth 2.2"
Miscellaneous
Additional Information
  • Fiber Channel Switch Infrastructure
  • Optical Wavelength: 1310nm
  • Metro Edge Switching
  • Digital Diagnostic Function
  • Min TX PWR: -9.5 dBm
  • Max TX PWR: -3 dBm
  • RX Sensitivity: -21 dBm
  • Max In PWR: -3 dBm
  • Link Budget: 11.50 dB
Compatibility
  • The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Country of Origin Taiwan
Warranty
Limited Warranty Lifetime
