StarTech

StarTech BNDTB4M2E1 Cables

SKU:

BNDTB4M2E1

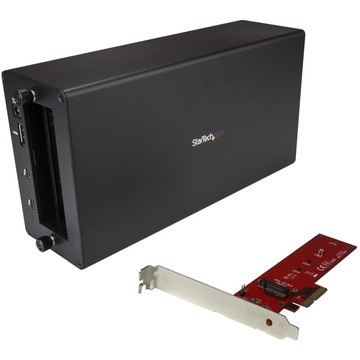

Cable, StarTech, Thunderbolt 3 to PCIe M.2 adapter, Chassis + Card
ico-puzzle-piece-02 This product is compatible with...
Prices could not be updated.
Description
ico-plus ico-minus
Cable - StarTech - Thunderbolt 3 to PCIe M.2 adapter - Chassis + Card
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wired
Interfaces/Ports
Host Interface Thunderbolt 3
DisplayPorts Quantity 1
Power Description
Power Plug Type Type N
Power Source Type Power Adapter
Physical Characteristics
Color Family Black
Product Color Black
Product Material
  • Aluminum
  • Steel
Height 3.2"
Width 5.6"
Length 11"
Weight (Approximate) 3.60 lb
Miscellaneous
Package Contents
  • 1 x Thunderbolt 3 PCIe expansion box
  • 1 x Thunderbolt 3 cable
  • 4 x Rubber feet
  • 1 x Universal power adapter (NA/JP, UK, EU, ANZ)
  • 1 x X4 PCI Express® to M.2 PCIe SSD Adapter
  • 1 x Low profile bracket
  • 1 x Full profile bracket (prexinstalled)
  • 2 x Quick start guides
  • 1 x SSD standoff and installation screw
Additional Information
  • Internal Ports" 1 - PCI Express x16; 1 - PCI Express x4
  • External Ports: 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin)
  • Drive Connectors: 1 - M.2 (PCIe, AHCI, M-Key, NGFF)
  • Host Connectors: 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps)
  • Fan(s): Yes
  • Fans: 1 - 92 mm
  • Air Flow Rate: 14.06 CFM
  • Noise Level: 24.55 dB
  • Interface: Thunderbolt; PCI Express
  • Bus Type: Thunderbolt 3; PCI Express
  • Card Type: Standard Profile
  • Industry Standards: Thunderbolt 3
  • Fan Bearing Type: Sleeve Bearing
  • Chipset ID: Chassis: Intel - Alpine Ridge DSL6540 ; PCIe Card: N/A
Application/Usage
  • Desktop
  • Laptop
Certification
  • CE
  • FCC
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 2 Year
