SIIG CE-RC0111-S1 Wireless Adapters

SKU:

CE-RC0111-S1

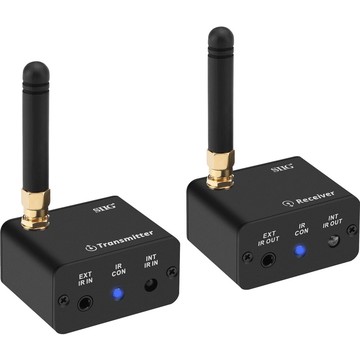

SIIG Wireless IR Signal Extender Kit, For A/V Equipment, Extend the IR signal up to 656ft (200m), TX to RX, IR over Wireless Signal Extender Kit- Pairing Button- IR Sensor- 2x USB Power Cable, 3.5mm IR jack- Aluminum Housing -Portable Housing Design -Compatible with IR remote controls using frequency range between 20KHz, 60KHz such as DVD player / cable boxes / satellite receivers and audio/H-Fi stereo systems, Frequency rate of 915MHz, 2 years warranty
ico-puzzle-piece-02 This product is compatible with...
Prices could not be updated.
Description
ico-plus ico-minus
Products and parts from SIIG.
Technical Specifications
ico-plus ico-minus
Physical Characteristics
Product Material Aluminum
Miscellaneous
Package Contents
  • Wireless IR Signal Extender Kit
  • 2 x USB Power Cable
  • IR Blaster Extension Cable
  • IR Receiver Extension Cable
  • User Reference Guide
Additional Information
  • Wireless transmission distance: up to 656ft (200m), line-of-sight
  • Wireless frequency: 915MHz
  • Power gain: 10dBm
  • IR frequency: 20KHz - 60KHz
  • Housing: Aluminum
  • Transmitter unit (TX):
    • Dimensions: 3.07" (L) x 1.22" (H) x 1.73" (W)
    • Weight: 0.09 lbs
    • Connector:
      • 1x, 3.5mm, IR Jack, Receiver
      • 1x, DC Jack, USB power input
      • 1x, IR Receiver sensor
      • 1x, IR LED indicator
      • 1x, Click button, lock ID
  • Receiver unit (RX):
    • Dimensions: 3.07" (L) x 1.22" (H) x 1.73" (W)
    • Weight: 0.09 lbs
    • Connector:
      • 1x 3.5mm, Emitter
      • 1x DC Jack, USB power input
      • 1x IR Emitter sensor
      • 1x IR LED indicator
      • 1x Click button, lock ID
  • USB Power cable:
    • Input: 4-Pin, USB Type-A, Power input
    • Output: DC 5V output
    • Power consumption: 300mW
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: 10 to 90% RH (non-condensing)
Application/Usage A/V Equipment
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
