SATO

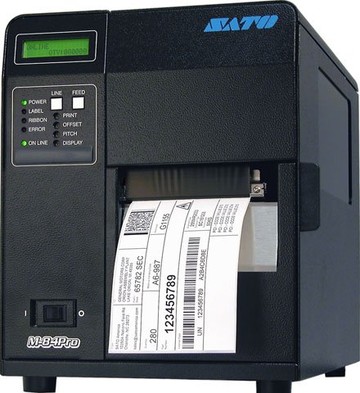

M84Pro3 Printer (305 dpi, 4.1 Inch Print Width, 8 ips Print Speed, Ethernet Interface and Cutter)

SKU:

WM8430141

The M84Pro Series - the rugged industrial generation of high performance printer with high resolution capabilities. The M84Pro offers user configurable print resolutions of 203, 305, and 609 dpi. The M84Pro's powerful electronics provide high throughput and print speeds of 10, 8 and 6 ips at 203, 305 and 609 dpi respectively
Prices could not be updated.
Description
ico-plus ico-minus

The SATO M84Pro(2) Barcode Label Printer is engineered for industrial applications, delivering exceptional performance and durability. Designed with a robust metal construction, this heavy-duty thermal printer supports resolutions of 203, 305, or 609 dpi, making it versatile for various labeling needs. With print speeds of up to 10 inches per second, it seamlessly handles compliance labeling, PCB marking, retail labeling, and asset tracking across various industries, including aerospace, automotive, and food services.


Key Features:
  • Heavy-Duty Metal Industrial Construction
  • User Configurable Print Resolution (203, 305, or 609 dpi)
  • High Print Speed of up to 10 ips
  • 18 MB On-Board Memory
  • Compatible with any Windows® application
  • Proven Rugged Reliable Design

Specifications:
  • Model: M84Pro(2)
  • Printing Method: Thermal Transfer/Direct Thermal
  • Print Resolution: 203 dpi (8 dots/mm)
  • Print Speed: 10 ips (254 mm/sec)
  • Max Width: 49.2" (1249 mm)
  • Media Types: Roll-fed, fanfold, die-cut, continuous
  • Memory: 16 MB RAM, 2 MB Flash
  • Dimensions: 10.4" W x 17.1" D x 13.4" H
  • Weight: 39.7 lbs (18 kg)

Main Features

  • Rugged: Industrial

  • Equipment Format: Industrial

  • Connection: Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 8 in/s
Maximum Print Resolution (dpi) 305
Maximum Print Width 4.10"
Barcode Symbology Supported
  • UPC-A
  • UPC-E
  • ITF-14
  • UCC/EAN 128
  • Code 128
  • Interleaved 2 of 5
  • Code 39
  • RSS
  • POSTNET
  • EAN-13
  • EAN-8
  • Code 93
  • MSI
  • Codabar
  • Bookland
  • Matrix 25
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 16 MB
Flash Memory 2 MB
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Cutter
Cutter Yes
Cutting Method Automatic
Media Types & Handling
Media Type
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Direct Thermal Label
  • Thermal Transfer Label
  • Synthetic Media
  • Tag Stock
  • Black Mark
  • Notched
Media Size Custom Size
Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter 8.60"
Maximum Label Width 5"
Maximum Label Length 32.80"
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height 13.4"
Width 10.4"
Depth 17.1"
Miscellaneous
Additional Information
  • Label present sensor
  • Media Width: Max. 5" / Min. 0.87"
  • Reflective sensor for black mark
  • Adjustable transmissive sensor for gap
  • Automatic programmable setting of top of form
Platform Supported PC
Certifications & Standards
  • CE
  • UL
  • CSA
  • TÜV
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document m84pro.pdf WM8430141  (PDF)
