Peerless-AV

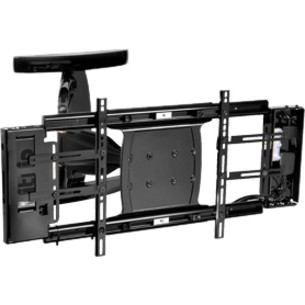

Peerless-AV SA761PU Stands

SKU:

SA761PU

MOUNT, SMARTMOUNT UNIVERSAL ARTICULATING ARM WALL MOUNT FOR 37" - 60" FLAT PANEL SCREENS
ico-puzzle-piece-02 This product is compatible with...
Prices could not be updated.
Description
ico-plus ico-minus
Products and parts from Peerless-AV.
Technical Specifications
ico-plus ico-minus
Product Information
Device Supported Flat Panel Display
Minimum Screen Size Supported 42"
Maximum Screen Size Supported 60"
Maximum Adjustable Depth 27.68"
Features
  • Tilt
  • Swivel
  • Articulating
  • Leveling System
  • Cable Management
Durability Scratch Resistant
Physical Characteristics
Color Family Black
Product Color Black
VESA Mount Compatible Yes
Mounting Pattern 600 x 400
Product Material Polycarbonate
Height 20.12"
Width 40.15"
Depth 4.66"
Weight (Approximate) 48.10 lb
Miscellaneous
Package Contents
  • Articulating Wall Mount
  • Wireless Transmitter Unit with Stand
  • Wireless Receiver Unit
  • Remote Control
  • 2 x 12V 2A Power Supply
  • IR Repeater
  • IR Emitter Cable (Transmitter)
  • 15-Pin D-Sub to RCA Female Component
  • Video Breakout Cable
  • 2 x 2.5ft (.75m) HDMI Cable
  • 4 x Mounting Brackets (2 short, 2 long)
  • 4ft (1.22m) Cable Management Sheath
  • 3-Tap Grounded Outlet
  • Mounting Hardware
  • Instruction Manual
Additional Information
  • Universal Mounting Pattern (W x H) 686 x 439mm (27" x 17")
  • Wireless Range: 131ft (40m)
  • Audio: 2 Ch. Linear PCM, Analog, 48kHz 16-bit ADC
  • Audio Input: 1 x 3.5mm Audio Jack (Transmitter)
  • Audio Output: 1 x 3.5mm Audio Jack (Receiver)
  • WiFi Frequency: 5.15~5.25GHz
  • Latency: < 30ms Latency
  • Power: Voltage 120 VAC, Consumption: 12V 2A
  • One-touch tilt allows for +15°/-5° without the use of tools for easy viewing angle adjustment
  • ±5° of roll allows for post installation leveling
  • 1" (25mm) vertical adjustment for screen position fine tuning
  • Offers smooth 90° swivel motion
  • Multi-link construction allows for a full 180° range of motion
  • Landscape to portrait flat panel screen orientation without needing to remove the screen
  • Minimalistic wall plate footprint for increased wall access and improved aesthetics
  • Screen can be held as close to the wall as 4.55" (116mm) or be extended as far as 27.55" (700mm)
Assembly Required No
Warranty
Limited Warranty 5 Year
