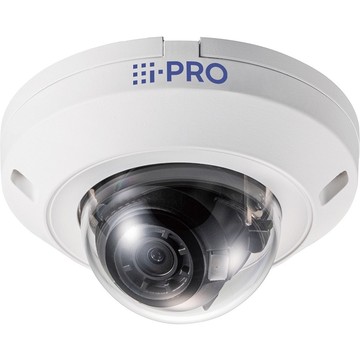

Panasonic WV-U2130LA Security Camera
WV-U2130LA
Select model
The Panasonic WV Series Security Camera is engineered for superior surveillance, offering impressive HD video quality and cutting-edge security features. With models supporting **H.264** and **JPEG video compression**, these cameras ensure seamless performance in a variety of lighting conditions. Designed for both indoor and outdoor environments, the **WV Series** provides continuous 360° rotation, making it ideal for comprehensive monitoring and enhancing security across your premises.
Key features:
- High Definition Imaging: Options for 720p, 1080p, and 3.0 MP video resolution.
- Dynamic Range Technologies: Mega Super Dynamic and Wide Dynamic Range capabilities.
- SmartHD Onvif Compliance: Ensures interoperability with other devices.
- Advanced Features: Auto tracking, image stabilization, and face detection.
- Robust Environmental Design: IP66 rated for weather resistance and IK10 impact rating.
Specifications:
- Imaging Device: 1/3" MOS Sensor, Progressive Scan
- Video Compression: H.264, JPEG
- Minimum Illumination: 0.05 lux (B/W)
- Video Streaming: Up to 30fps at 720p resolution
- Audio Capability: 2-way communication
- Power Supply: PoE (IEEE802.3af)
- Operating Temperature: -40°F to 122°F
- Dimensions: Varies by model
| Technical Information | |
|---|---|
| Recording Formats | Full HD |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
|---|---|
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | [16 : 9 mode] Horizontal : 100° Vertical : 54° [ 4 : 3 mode] Horizontal : 81° Vertical : 60° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
|---|---|
| Video Formats |
|
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
|---|---|
| Lens Type | Varifocal |
| Maximum Focal Length | 3.20 mm |
| Lens Included | Yes |
| Minimum Aperture | f/2 |
| Maximum Aperture | f/1 |
| Exposure | |
|---|---|
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 16/30 Second |
| Network & Communication | |
|---|---|
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Interfaces/Ports | |
|---|---|
| Network (RJ-45) | Yes |
| Power Description | |
|---|---|
| Input Voltage | 48 V DC |
| Power Source Type |
|
| Physical Characteristics | |
|---|---|
| Mount Type |
|
| Form Factor | Dome |
| Color Family | Dual Color |
| Product Color |
|
| Height | 2.4" |
| Diameter | 4.3" |
| Weight (Approximate) | 8.82 oz |
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
|---|---|
| Features |
|
| Indoor/Outdoor | Indoor |
