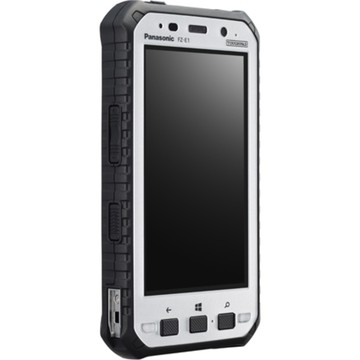

PANASONIC, WINDOWS E8.1HH, QUALCOMM MSM8974AB 2.3GHZ QUAD CORE, 5 HD 10-PT GLOVED MULTI TOUCH, 2GB, 32GB, WIFI A/B/G/N/AC, BLUETOOTH, 4G LTE AT&T/VERIZON MICRO SIM SLOTS (VOICE/DATA) , DOES NOT INCLUDE AC ADAPTER
FZ-E1BBCA1BM
Select model
The Panasonic Toughpad FZ-E1 is the world's most rugged 5" handheld tablet, designed for demanding environments. With its **MIL-STD-810G** certification and **IP68** dust and water resistance, this tablet promises durability without compromising on functionality. The FZ-E1 operates on a **Windows® Embedded 8.1** system and features a remarkable **14-hour hot-swappable battery**, ensuring continuous productivity. Its glove-enabled multi-touch display remains readable in daylight, making it an ideal choice for outdoor and industrial use.
Key Features
- Rugged design: MIL-STD-810G & IP65/IP68 ratings for extreme conditions
- Extended battery life: 14-hour continuous use with hot-swappable capability
- Display: 5" daylight-readable, glove-enabled multi-touch screen
- Integrated options: Barcode reader and magstripe reader available
- Compatibility: Supports 4G LTE, Bluetooth® v4.0, and GPS
Specifications
- Operating System: Windows® Embedded 8.1 Handheld
- Processor: Qualcomm MSM8974AB 2.3GHz Quad-Core
- Memory: 2GB RAM, 32GB storage (expandable via microSDXC)
- Display: 5" HD (1280 x 720), anti-reflective and anti-glare
- Battery: Li-Ion 3.8V, 6200mAh, charges to 50% in 1 hour
- Weight: Approx. 0.94 lb
- Dimensions: 6.5"(L) x 3.4"(W) x 1.2"(H)
- Warranty: 3-year limited warranty, parts and labor
Main Features
-
Operation System: Windows
-
Connection: Bluetooth
| Processor | |
|---|---|
| Processor Manufacturer | Qualcomm |
| Processor Type | Snapdragon 801 |
| Processor Model | MSM8974AB |
| Processor Speed | 2.36 GHz |
| Processor Core | Quad-core (4 Core) |
| Cache | 2 MB |
| Memory | |
|---|---|
| Standard Memory | 2 GB |
| Flash Memory | 32 GB |
| Memory Card Reader | Yes |
| Memory Card Supported | microSDXC |
| Display & Graphics | |
|---|---|
| Screen Size | 5" |
| Display Screen Type | Active Matrix TFT Color LCD |
| Aspect Ratio | 16:9 |
| Screen Mode | HD 720 |
| Screen Resolution | 1280 x 720 |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Graphics Controller Manufacturer | Qualcomm |
| Graphics Controller Model | Adreno 330 |
| Network & Communication | |
|---|---|
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Service Provider | AT&T/Verizon |
| Cellular Generation | 4G |
| Cellular Network Supported | CDMA2000 |
| Cellular Data Connectivity Technology |
|
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.0 |
| WWAN Supported | Yes |
| Near Field Communication | Yes |
| I/O Expansions | |
|---|---|
| Expansion Slot Type | Micro SIM Card |
| Built-in Devices | |
|---|---|
| Sensor Type |
|
| Webcam | Yes |
| Rear Camera | Yes |
| Microphone | Yes |
| Speakers | Yes |
| Interfaces/Ports | |
|---|---|
| Total Number of USB Ports | 1 |
| Number of USB 2.0 Ports | 1 |
| Dock Interface | Yes |
| Headphone/Microphone Combo Port | Yes |
| Operating System | |
|---|---|
| Operating System | Windows Embedded 8.1 Handheld |
| Input Devices | |
|---|---|
| Keyboard Type | Touchscreen Keyboard |
| Battery Information | |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 6200 mAh |
| Maximum Battery Run Time | 14 Hour |
| Maximum Standby Battery Time | 1 Month |
| Battery Talk Time | 23 Hour |
| Physical Characteristics | |
|---|---|
| Rugged | Yes |
| Height | 1.2" |
| Width | 3.4" |
| Depth | 6.5" |
| Weight (Approximate) | 15.04 oz |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Warranty | |
|---|---|
| Limited Warranty | 3 Year |
