Opticon

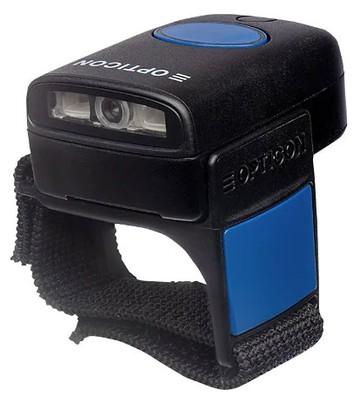

Opticon RS3000-00 Accessories

SKU:

RS3000-00

Barcode Scanners, Opticon RS-3000, 2D Bluetooth Barcode Ring Scanner, 2 Year warranty, Adjustable finger strap allows for an easy and quick conversion for either right or left hand operation
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Opticon.
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable/Wireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

Postal code:

  • Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET

2D:

  • Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data matrix (ECC200), Passport MRZ (OCR-B), maxi Code (mode 2~5), MicroPDF417, MicroQR Code, PDF417, QR Code
Light Source LED
Scan Mode Trigger
Depth of Field

Depth of field at code 39:

  • 55 - 128 mm (0.127 mm) / 2.16 - 5.04 in (5 mil)
  • 54 - 239 mm (0.254 mm) / 2.13 - 9.41 in (10 mil)
  • 71 - 435 mm (0.508 mm) / 2.79 - 17.13 in (20 mil)

Depth of field at QR code:

  • 62 - 113 mm (0.169 mm) / 2.44 - 4.45 in (6.7 mil)
  • 24 - 252 mm (0.381 mm) / 0.94 - 9.92 in (15 mil)
Scan Pattern Area
Scanning Distance 17.13"
Features
  • Notification LED
  • Vibration
  • Scan Button
  • Ergonomic Design
Number of Keys 2
Field of View (Horizontal) 38°
Field of View (Vertical) 29°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Maximum Ambient Light 100000 lux
Drop Specification
  • 1.5 m / 5 ft drop onto concrete surface
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Image Sensor Resolution 640 x 480
Illumination Type LED
Illumination Color White
Memory
Standard Memory 96 KB
Flash Memory 512 KB
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface USB
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 400 mAh
Maximum Battery Run Time 27 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 140°F (60°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 90%
Physical Characteristics
Form Factor Wearable
Product Material Acrylonitrile Butadiene Styrene (ABS)
Durability Impact Resistant
Height 0.8"
Width 1.3"
Depth 1.9"
Weight (Approximate) 0.92 oz
Miscellaneous
Ingress Protection (IP) Rating IP42
Application/Usage
  • Warehouse
  • Logistics
  • Retail
Platform Supported
  • iOS
  • Android
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 2 Year
