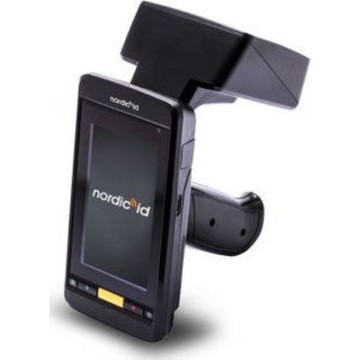

Nordic ID SpeedTag 1000 Handheld Handheld UHF RFID mobile computer 1000 tags/s, NUR2-1W, Linear/Circular/Proximity, 12h battery, IP54

SKU:

NRD-HTG00053

Nordic ID SpeedTag 1000 Handheld is a rugged handheld UHF RFID mobile computer built for fast, reliable data capture in logistics, warehousing, retail, and manufacturing. Powered by Android and the Nordic ID NUR2-1W module, it reads up to 1000 tags per second and combines a 4.3-inch Gorilla Glass touchscreen, adaptive antenna modes, and long-lasting removable battery performance for efficient inventory and asset tracking.
Description
ico-plus ico-minus

The Nordic ID HH53 RFID Handheld Reader is a cordless UHF mobile computer engineered for fast, reliable data capture in retail, warehousing, logistics and asset-management environments. Combining a Nordic ID NUR2‑1W RFID module with a 2D imager and dual‑band WLAN, the device supports mixed RFID and barcode workflows to accelerate inventory cycles and reduce errors. With a rugged IP54 housing, removable battery rated for extended operation, a 4.3‑inch Gorilla Glass touchscreen and tactile keypad, the HH53 is built to remain connected and productive in field operations where throughput, durability and ease of use matter.

Key Features

  • High-speed RFID capture: NUR2‑1W module delivers very fast read performance to speed inventory and asset audits.
  • Dual capture workflow: Integrated 2D imager plus UHF RFID support enables simultaneous barcode and tag collection for flexible operations.
  • Reliable wireless connectivity: Dual‑band WLAN (802.11a/b/g/n), Bluetooth 4.2 and optional 3G keep data flowing in mobile and networked environments.
  • Rugged, serviceable design: IP54 ingress protection, 1.2 m drop resistance and a removable Li‑ion battery support intensive daily use and easy maintenance.
  • Operator-friendly interface: 4.3‑inch Gorilla Glass touchscreen, 5‑button keypad, high‑visibility LED aimer and haptic feedback improve speed and accuracy.

Specifications

  • Product Name: Nordic ID HH53 RFID Handheld Reader
  • Brand: Nordic ID
  • RFID Module: Nordic ID NUR2-1W
  • RFID Read Rate: up to 1000 tags/s
  • RFID Frequency Range: 865.6 - 867.6 MHz
  • RFID Type / Band: UHF RFID
  • Imager Type: 2D imager (1D/2D support)
  • Wireless LAN / Wi‑Fi: Dual‑band (802.11a/b/g/n), 2.4 GHz & 5 GHz
  • Bluetooth: Bluetooth 4.2 Class 2 (Classic, Low Energy)
  • Cellular (optional): 3G
  • GNSS: Supported
  • Operating System: Android
  • Android Version: 6
  • CPU: Quad‑core 1 GHz
  • RAM: 1 GB
  • Internal Storage: 8 GB (flash memory)
  • Screen Size: 4.3 in
  • Screen Material / Protection: Gorilla Glass
  • USB: USB 2.0
  • Battery Type: Removable Li‑Po / removable lithium‑ion
  • Battery Capacity: 7000 mAh
  • Battery Voltage: 3.7 V
  • Battery Life (intensive use): up to 12 h
  • Ingress Protection Rating: IP54
  • Drop Resistance: 1.2 m
  • Antenna Modes: linear, circular, proximity
  • Dimensions: 135 x 91 x 196 mm
  • Number of Keypad Buttons: 5
  • Haptic Feedback: Yes
  • Aimer: High‑visibility LED aimer

Main Features

  • RFID: Yes

  • Rugged: Commercial

  • IP Rating: IP54

  • Range: FlexRange

  • Connectivity: Cordless

Documents
ico-plus ico-minus
Product document mod-hh53-nordic_id-readers-datasheet.pdf NRD-HTG00053 Product document mod-hh53-nordic_id-readers-user-manual.pdf NRD-HTG00053 Product document nordic-id-hh53-datasheet.pdf NRD-HTG00053 Product document mod-hh53-nordic_id-readers-datasheet.pdf MOD-HH53 Product document mod-hh53-nordic_id-readers-user-manual.pdf MOD-HH53
FAQs
ico-plus ico-minus
What is the RFID read rate on the Nordic ID HH53, and what frequency range does it support?
The Nordic ID HH53 uses the NUR2-1W RFID module and can read up to 1000 tags per second. It operates in the UHF band over a frequency range of 865.6 to 867.6 MHz.
Can the Nordic ID HH53 capture barcodes in addition to RFID tags?
Yes, the HH53 includes an integrated 2D imager that supports both 1D and 2D barcodes, enabling mixed RFID and barcode workflows in a single device.
What wireless connectivity options does the Nordic ID HH53 offer?
It supports dual-band WLAN (802.11a/b/g/n) on both 2.4 GHz and 5 GHz, Bluetooth 4.2 Class 2 with Classic and Low Energy support, GNSS, and an optional 3G cellular connection.
How long does the Nordic ID HH53 battery last, and can it be replaced in the field?
The removable 7000 mAh Li-ion battery is rated for up to 12 hours of intensive use, and its removable design allows straightforward swap-out without returning the device for service.
How rugged is the Nordic ID HH53 for warehouse or field deployment?
The HH53 carries an IP54 ingress protection rating and withstands drops of up to 1.2 m, making it suitable for demanding daily use in logistics, warehousing, and retail environments.
What are the core computing and display specifications of the Nordic ID HH53?
The device runs Android 6 on a quad-core 1 GHz CPU with 1 GB RAM and 8 GB internal flash storage, and features a 4.3-inch Gorilla Glass touchscreen complemented by a 5-button keypad and haptic feedback.
