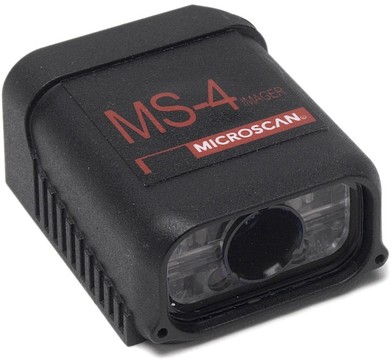

Microscan FIS-0004-0004G Fixed Mount Scanners

The Microscan MS-4 Imager Fixed Barcode Scanner is the world's smallest high-resolution imager designed for embedded bar code applications. With compact dimensions of just 1" x 1.8" x 2.10" and weighing less than 2 ounces, this scanner effortlessly reads both linear and 2D codes in any orientation, ensuring unmatched data integrity. Its EZ button setup and visible performance indicators enhance user-friendliness, while the wide field of view permits close-range scanning without the hassle of laser line alignment. Ideal for OEM design engineers seeking reliability in tight spaces, the MS-4 is the perfect tool for efficient scanning.

Key Features:

• Compact Size: Measures just 1" height x 1.8" width x 2.10" length
• Omni-Directional Reading: Scans 2D and linear codes in any orientation
• Wide Field of View: Reads codes as close as 1" away
• Push-Button Setup: EZ button for quick programming
• Multiple Symbologies Supported: Reads various 2D and linear bar codes

Specifications:

• Dimensions: 1" (25.4 mm) H x 1.8" (45.7 mm) W x 2.10" (53.3 mm) L
• Weight: Less than 2 oz (57 g)
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Humidity: Up to 90% (non-condensing)
• Power: 5 VDC +/- 5%
• Output: RS-232, RS-422, or USB
• Read Rate: Up to 10 decodes per second
• Environmental Rating: IP54
• LED Indicators: Read Performance, Power, Read Status
