MagTek

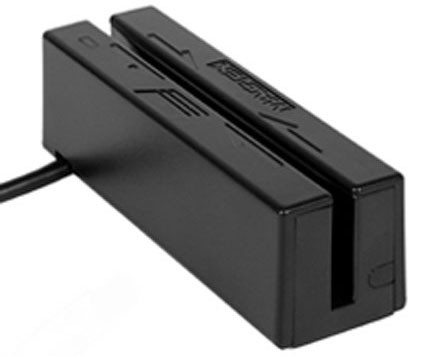

Mini MSR RS232 Tracks 1, 2, and 3 Black serial

SKU:

21040082

The Mini Magnetic Card Swipe reader family can read ISO and AAMVA card formats. The readers are available in various interface options. These readers provide a small package that is only slightly longer than a credit card. They can be mounted either with the self-mounting adhesive strips or by using the embedded threaded mounting hardware
Description
ico-plus ico-minus
The MagTek MiniUSB Credit Card Reader is a versatile and efficient device designed to streamline transaction processes. With its sleek, compact design, this USB swipe reader offers compatibility with any computer or terminal equipped with a USB interface. It operates without the need for external power, ensuring effortless integration into any payment system. The MiniUSB reader excels in reading encoded cards that comply with ISO, ANSI, CDL, and AAMVA standards, making it reliable for businesses that require high-volume transactions and durability.

Key features:
  • Powerful and Compact: Powered through USB, no external power required.
  • Robust Compatibility: Works with any device featuring a USB interface.
  • Flexible Reading Options: Capable of reading single, dual, or three track cards in both directions.
  • Endurance: Up to 1,000,000 passes with ISO-conforming cards.
  • Available Colors: Choose between classic black or elegant white.


Specifications:
  • Model Name: MiniUSB, USB Swipe Reader
  • Dimensions: Length: 3.94" (100mm), Width: 1.28" (32.5mm), Height: 1.23" (31.3mm)
  • Weight: 5.8 oz (1.65g)
  • Operating Temperature: 32°F to 131°F (0°C to 55°C)
  • Storage Temperature: -22°F to 158°F (-30°C to 70°C)
  • Humidity: Operating: 10% to 90% noncondensing; Storage: Up to 100% noncondensing
  • Altitude: Operating: 0-10,000 ft (0-3,048m); Storage: 0-50,000 ft (0-15,240m)
Technical Specifications
ico-plus ico-minus
Technical Information
Magnetic Stripe Track Configuration Triple Track
Magnetic Stripe Track Number
  • Track 1
  • Track 2
  • Track 3
Interfaces/Ports
Serial Yes
Physical Characteristics
Product Color Black
Height 1.2"
Width 1.3"
Length 3.9"
Weight (Approximate) 5.90 oz
Miscellaneous
Additional Information
  • 6FT DB9 Cable with 6ft length
  • Dual color LED
Documents
ico-plus ico-minus
Product document usbswipereader.pdf 21040082 Product document micr.pdf MOD-MAGTEK-MINI-MSR
