Magicard

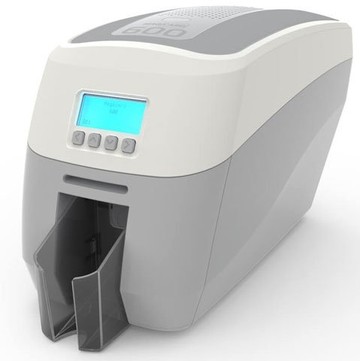

Magicard 600, Single-Sided

SKU:

3652-5001/2

Print vibrant, secure single-sided ID cards with the Magicard 600 Secure One-Side Printer, a direct-to-card dye sublimation and thermal transfer solution delivering 600 x 300 dpi output, micro text support, and built-in HoloKote security watermark options. With USB, Ethernet, and Wi-Fi connectivity, it combines fast color printing, reliable monochrome output, and flexible card handling for efficient badge production.
Description
ico-plus ico-minus

The Magicard SecureColor 600 is a professional-grade card printer engineered for on-demand issuance of secure ID, access and membership cards across corporate, education, events and government reception environments. Delivering high-resolution direct-to-card printing, the unit supports color dye sublimation, monochrome thermal transfer and rewritable media to produce crisp graphics, microtext and integrated security watermarks. Built for integration into networked workflows, variants offer USB, Ethernet and Wi‑Fi connectivity plus optional magnetic stripe and smart card encoding. Practical card handling with a 100-card input hopper (expandable) and a 70-card output stacker helps organizations scale badge issuance while built-in security options such as HoloKote and digital shredding protect card data and deter fraud.

Key Features

  • High-resolution output: 600 x 300 dpi print quality produces sharp text, photos and fine security elements for professional badges and identity cards.
  • Flexible print technology: Supports color dye sublimation, monochrome thermal transfer and rewritable printing to match full-color badges, economical mono runs and reusable cards.
  • Robust connectivity: Multiple network options including High Speed USB 2.0 (USB 3.0 compatible Type B), USB host, 10/100 Ethernet and Wi‑Fi for easy desktop or networked deployment.
  • Encoding & security: Optional magnetic stripe (HiCo/LoCo ISO 7811), contact and contactless smart card encoding (MIFARE, DESFire, iCLASS, ISO 7816) with HoloKote watermarking and digital shredding for secure issuance.
  • Efficient card handling: Standard 100-card input hopper (optional 200 capacity), 70-card output stacker and support for common CR80/CR79 card formats streamline batch printing.

Specifications

  • Print Resolution: 600 x 300 dpi
  • Print Technology: Color dye sublimation; monochrome thermal transfer; rewritable
  • Connectivity Interfaces: High Speed USB 2.0 (USB 3.0 compatible Type B), USB host port, 10/100 Ethernet, Wi‑Fi (IEEE 802.11b/g/n) via supplied dongle
  • Print Speed (Color): Up to 190 cards/hour
  • Print Speed (Monochrome): Up to 720–750 cards/hour
  • Input Hopper Capacity: 100 cards (optional 200)
  • Output Hopper Capacity: 70 cards
  • Card Thickness Accepted: 20–40 mil (0.51 to 1.02 mm)
  • Supported Card Sizes: CR80, CR79
  • Dimensions (L x W x H): 475.5 x 211.5 x 248 mm
  • Weight: 4.7 kg (approx.)
  • Power Requirements: 100–240 V, 50–60 Hz (autoranging), external power supply
  • Operating Temperature Range: 10 to 30 °C
  • Card Encoding: Magnetic stripe (HiCo/LoCo, ISO 7811), Smart card (Contact chip ISO 7816, MIFARE, DESFire, iCLASS)
  • Security Features: HoloKote watermark (standard and custom designs), HoloPatch support, digital shredding (variant dependent)

Main Features

  • Printing Side: One Side

  • Use Frequency: Between 500 and 5000 cards

  • Connection: USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Card Print
Print Color Capability Color
Printing Capability Single Sided
Maximum Mono Print Speed 5 Second
Maximum Color Print Speed 19 Second
Maximum Print Resolution (dpi) 600 x 300
Application/Usage Desktop
Connectivity Technology Wireless
Print Technology Dye Sublimation/Thermal Transfer
Interfaces/Ports
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11b/g/n
Media Types & Handling
Media Type
  • Magnetic Stripe Card
  • Smart Card
  • Card
  • Self-adhesive Card
Media Size
  • CR-80 Card
  • CR79 Card
Software
Operating System Supported Windows 7, 8, 10 (32 and 64bit) Windows server 2008, 2012, 2016. Linux with CUPS support and Mac OS X 10.9.0 upwards.
Power Description
Power Source AC Supply
Input Voltage
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature 50°F (10°C) - 86°F (30°C)
Physical Characteristics
Height 9.8"
Width 8.3"
Depth 18.7"
Weight (Approximate) 10.36 lb
Miscellaneous
Package Contents
  • Magicard 600 ID card printer
  • Printer power supply
  • USB cable
  • Input and output card hoppers
  • Driver installation disk
  • USB Dongle
Cables Included USB
Platform Supported
  • PC
  • Mac
Country of Origin Great Britain
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document 600.pdf 3652-5001/2 Product document 600.pdf MOD-600
FAQs
ico-plus ico-minus
What print resolution and speed can I expect from the Magicard 600 card printer?
The Magicard 600 prints at 600 x 300 dpi and reaches speeds of up to 190 cards per hour in color and up to 720–750 cards per hour in monochrome.
Which connectivity interfaces does the Magicard 600 support for network integration?
It offers High Speed USB 2.0 (USB 3.0 compatible Type B), a USB host port, 10/100 Ethernet, and Wi-Fi via IEEE 802.11b/g/n using a supplied dongle, making it straightforward to deploy on an existing network.
What card encoding options are available on the Magicard 600?
The printer supports optional magnetic stripe encoding (HiCo/LoCo, ISO 7811) and smart card encoding for contact chip (ISO 7816) and contactless technologies including MIFARE, DESFire, and iCLASS.
What security features does the Magicard 600 include to protect sensitive card data?
It incorporates HoloKote watermarking (available in standard and custom designs), HoloPatch support, and digital shredding, which fragments and renders card data irrecoverable after the print job is complete.
How many cards can the Magicard 600 hold, and what card formats does it accept?
The standard input hopper holds 100 cards and is expandable to an optional 200-card capacity, while the output stacker holds 70 cards; accepted card sizes are CR80 and CR79 with a thickness range of 20–40 mil (0.51 to 1.02 mm).
What print technologies does the Magicard 600 support, and what environments is it suited for?
It supports color dye sublimation, monochrome thermal transfer, and rewritable printing, making it suitable for corporate, education, events, and government reception environments that require full-color badges, economical mono runs, or reusable card programs.
