Keyscan

Keyscan K-VAN Accessories

SKU:

K-VAN

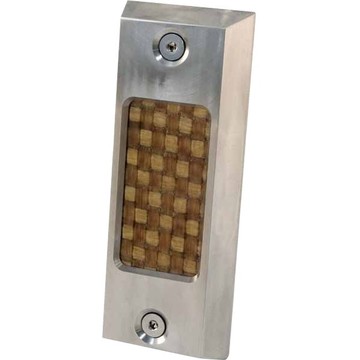

Keyscan Vandal Resistant Proximity Reader - Proximity - 1" Operating Range - Wiegand - 12 V DC
ico-puzzle-piece-02 This product is compatible with...
Technical Specifications
ico-plus ico-minus
Technical Information
Identification Method Proximity
Operating Range 1"
Application/Usage Door
Features
  • Vandal Resistant
  • Weather Proof
Interfaces/Ports
Wiegand Yes
Power Description
Input Voltage 12 V DC
Physical Characteristics
Product Material Stainless Steel
Height 5.3"
Width 2"
Depth 0.8"
Miscellaneous
Additional Information
  • Stylish yet extremely robust for the toughest applications
  • Uses proven digital radio frequency identification technology
  • Ideal proximity reader where vandalism is a concern
  • Designed for indoor and outdoor environments
  • Pass-thru Wiegand output for easy integration into existing access control systems
  • Mounting options include two countersunk 0.25 inch thru-holes as well as four 1/4-20 tapped holes in the back for tamper-proof blind mount installations.
  • Typical Current Draw: 90mA
  • Cable Termination: 6 conductor shielded 12" Pigtail standard
  • Wiegand Output: 500 feet (152 meters)
  • Operating Temp: -40ºC to 65ºC (-40ºF to 149ºF)
Certifications & Standards UL752 (FiberTex Material)
Warranty
Limited Warranty Lifetime
