Juniper Networks

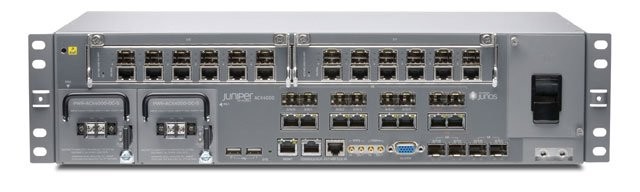

Juniper Networks ACX4000BASE-DC Wireless Routers

SKU:

ACX4000BASE-DC

Converged Access Gateway Base Unit DC Version, 2 Open Slot Chassis, 6xGE Cu+2 x GE POE, 2x GE Fiber, 2x10GE Fiber (Optics Sold Separately)
Description
ico-plus ico-minus

The Juniper Networks ACX4000 Wireless Router is engineered to revolutionize access and aggregation layers, seamlessly integrating Ethernet and IP/MPLS infrastructure. With advanced synchronization technology, it ensures high availability and security, providing an exceptional Quality of Experience (QoE). Ideal for service providers and enterprises in diverse industries, this router features zero-touch deployment capabilities, effectively lowering total costs of ownership and enabling easier network management.


Key features:
  • High Capacity: Supports up to 60 Gbps of throughput.
  • Advanced Security: Incorporates IPsec, MACsec, and NAT for robust protection.
  • Zero Touch Deployment: Simplifies installation and provisioning processes.
  • High-Precision Timing: Meets stringent LTE-Advanced requirements.
  • Environmental Hardening: Suitable for outdoor deployment with IP65 compliance.

Specifications:
  • Dimensions: 17.5 x 4.35 x 9.25 in (44.5 x 11 x 23.5 cm)
  • Weight: 23.8 lb (10.82 kg) fully configured
  • Power Supply: -48 V / -60 V nominal or +24 VDC nominal
  • Operating Temperature: -40° to 149° F (-40° to 65° C)
  • Humidity: 95% RH noncondensing
Technical Specifications
ico-plus ico-minus
Interfaces/Ports
Total Number of Ports 8
USB Yes
Powerline No
Management Port Yes
Token Ring Port No
Serial V.35 Interface No
Number of Network (RJ-45) Ports 8
I/O Expansions
Total Number of Expansion Slots 6
Expansion Slot Type
  • SFP+
  • SFP (mini-GBIC)
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Power Description
PoE (RJ-45) Port Yes
Input Voltage
  • 110 V AC
  • 220 V AC
Redundant Power Supply Supported Yes
Power Source Power Supply
Physical Characteristics
Compatible Rack Unit 2.5U
Form Factor Rack-mountable
Height 4.4"
Width 17.5"
Depth 9.3"
Weight (Approximate) 23.80 lb
Miscellaneous
Certifications & Standards

Safety Approvals:

  • CAN/CSA-C22.2 No. 60950-1
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1 - CB Scheme
  • EN 60825-1

EMC:

  • AS/NZS CISPR22 Class A
  • EN55022 Class A
  • VCCI Class B
  • FCC Part 15 Class A

Immunity:

  • EN-61000-3-2
  • EN-61000-3-3
  • EN-61000-4-2
  • EN-61000-4-3
  • EN-61000-4-4
  • EN-61000-4-5
  • EN-61000-4-6
  • EN-61000-4-11

ETSI:

  • ETSI EN300386-2
  • ETSI EN 300 019-2-1 (2000)
  • ETSI EN 300 019-2-2 (1999)
  • ETSI EN 300 019-2-3 (2003)
  • ETSI EN 300 019-2-4 (2003)
  • ETS 300753 (1997)

NEBS:

  • SR-3580 NEBS Criteria Levels (Level 3 Compliance)
  • GR-63-CORE
  • GR-1089-CORE
  • GR-3108-CORE

Telecomm Compliance:

  • RTTE Directive 1995/5/EC
  • FCC Part 68
  • Industry Canada CS-03
  • JATE Green Book
  • TBR 21 (XDSL only)
  • TBR 12/13
  • ACA TS016
  • G.703
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document acx-series.pdf ACX4000BASE-DC Product document acx-series.pdf MOD-JUNIPER-ACX4000
