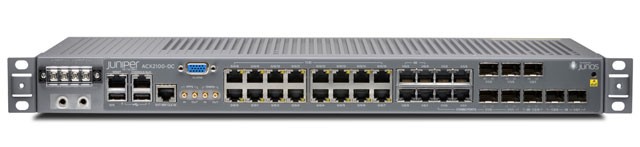

Juniper Networks ACX2100-AC Wireless Routers

SKU:

ACX2100-AC

ACX2100 Universal Access Router, AC version, 1RU, SyncE/1588, Temperature hardened, Passively cooled, 16XT1/E1, 2XGE SFP+, 2XGE SFP, 4XGE Combo( SFP or RJ45), 4xGE RJ45 ,Optics Sold Separately, Redundant AC power supply
Description
ico-plus ico-minus

Experience unparalleled performance with the Juniper Networks ACX2100 Wireless Router. Designed to optimize your network’s access and aggregation layers, this router facilitates seamless deployment of Ethernet and IP/MPLS infrastructure. The ACX2100 features cutting-edge synchronization technology, robust security measures, and high availability capabilities to enhance the quality of experience (QoE). Ideal for various applications, including mobile backhaul, residential, and enterprise services, it ensures efficient operational intelligence and lowers total cost of ownership (TCO).


Key features:

  • High-Precision Synchronization: Ensures accurate timing for LTE-Advanced and 5G applications.
  • Zero Touch Deployment: Streamlines installation and provisioning for improved operational efficiency.
  • Advanced Security Services: Protects against vulnerabilities with features like IPsec and MACsec.
  • MEF CE 2.0 Compliant: Supports extensive Carrier Ethernet services for diverse business needs.
  • Environmentally Hardened Design: Suitable for outdoor deployments in extreme conditions.

Specifications:

  • Throughput: Up to 60 Gbps
  • Operating Temperature: -40° to 149° F (-40° to 65° C)
  • Weight: 8.3 lb (3.77 kg)
  • Power: -48 V to -60 V nominal
  • Dimensions: 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
  • Humidity: 95% RH non-condensing
  • NEBS Compliance: Yes
Technical Specifications
ico-plus ico-minus
Interfaces/Ports
Total Number of Ports 24
USB Yes
Powerline No
Management Port Yes
Token Ring Port No
Serial V.35 Interface No
Number of Network (RJ-45) Ports 8
Number of RJ-48 Ports 16
Media & Performance
Carrier Supported T-carrier/E-carrier
I/O Expansions
Total Number of Expansion Slots 8
Expansion Slot Type
  • SFP
  • SFP+
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Technology
  • T1/E1
  • 10/100/1000Base-T
Power Description
PoE (RJ-45) Port No
Input Voltage
  • 110 V AC
  • 220 V AC
Redundant Power Supply Supported Yes
Power Source Power Supply
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.8"
Width 17.5"
Depth 9.4"
Weight (Approximate) 8.30 lb
Miscellaneous
Certifications & Standards

Safety Approvals:

  • CAN/CSA-C22.2 No. 60950-1
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1 - CB Scheme
  • EN 60825-1

EMC:

  • AS/NZS CISPR22 Class A
  • EN55022 Class A
  • VCCI Class B
  • FCC Part 15 Class A

Immunity:

  • EN-61000-3-2
  • EN-61000-3-3
  • EN-61000-4-2
  • EN-61000-4-3
  • EN-61000-4-4
  • EN-61000-4-5
  • EN-61000-4-6
  • EN-61000-4-11

ETSI:

  • ETSI EN300386-2
  • ETSI EN 300 019-2-1 (2000)
  • ETSI EN 300 019-2-2 (1999)
  • ETSI EN 300 019-2-3 (2003)
  • ETSI EN 300 019-2-4 (2003)
  • ETS 300753 (1997)

NEBS:

  • SR-3580 NEBS Criteria Levels (Level 3 Compliance)
  • GR-63-CORE
  • GR-1089-CORE
  • GR-3108-CORE

Telecomm Compliance:

  • RTTE Directive 1995/5/EC
  • FCC Part 68
  • Industry Canada CS-03
  • JATE Green Book
  • TBR 21 (XDSL only)
  • TBR 12/13
  • ACA TS016
  • G.703
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document acx-series.pdf ACX2100-AC Product document acx-series.pdf MOD-JUNIPER-ACX2100
