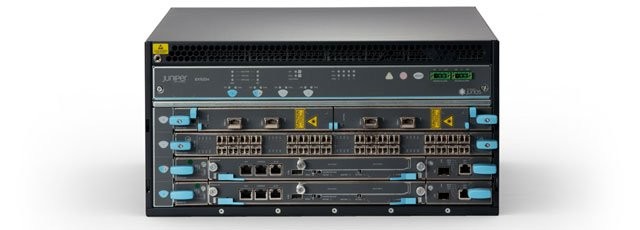

Juniper Networks EX9208-CHAS3-S Ethernet Switch

SKU:

EX9208-CHAS3-S

EX9208 Chassis 3 with Passive Midplane
Description
ico-plus ico-minus

The Juniper Networks EX9200 Ethernet Switch series offers a programmable, flexible, and scalable solution for mission-critical applications in campus and data center environments. Designed to reduce costs and complexities, the EX9200 consolidates network layers while delivering carrier-class reliability. With high port densities and support for advanced technologies like MPLS, VPLS, and E-VPN, it simplifies the deployment of cloud applications, virtualized servers, and rich media collaboration tools, enhancing operational efficiency and security.


Key Features
  • Modular Design: Flexibility with EX9204, EX9208, and EX9214 chassis options.
  • High Port Density: Supports up to 576 10GbE ports at wire speed.
  • Carrier-Class Reliability: Dual Routing Engines for non-stop operation.
  • Advanced Networking Benefits: Integrated with VMware NSX for SDN deployment.
  • MACsec Support: Provides enhanced security features with AES encryption.

Specifications
  • Architecture: Separate data, control, and management planes.
  • Power Supply: Supports AC and DC input with redundancy options.
  • Weight: EX9204 (128 lbs), EX9208 (163.6 lbs), EX9214 (350.1 lbs).
  • Backplane Capacity: Up to 13.2 Tbps (EX9214).
  • Maximum Fabric Bandwidth per Slot: 480 Gbps.
  • Dimensions: EX9204 (5U), EX9208 (8U), EX9214 (16U).
  • Operating Temperature: 32°F to 104°F (0°C to 40°C).
Technical Specifications
ico-plus ico-minus
Interfaces/Ports
Token Ring Port No
LRE Port No
Bypass No
Modular No
Management Port Yes
USB No
Stack Port No
Port/Expansion Slot Details 8 x Expansion Slot
I/O Expansions
Total Number of Expansion Slots 8.0
Expansion Slot Type
  • Line Card
  • Routing Engine
  • Switch Fabric
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
  • VLAN
  • QoS
  • Junos OS Command-Line Interface (CLI)
  • Junos XML Management Protocol
  • SNMP v1/2/3
  • RADIUS
  • TACACS+
  • MIB
  • Firewall-based Port Mirroring
  • Link Layer Discovery Protocol (LLDP)
  • Advanced Insight Solutions (AIS)
  • DHCP
  • Syslog
  • MIB
Power Description
PoE (RJ-45) Port No
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 8U
Form Factor Rack-mountable
Height 14"
Width 17.5"
Depth 27.8"
Weight (Approximate) 88.40 lb
Miscellaneous
Certifications & Standards

IEEE Standards:

  • 802.1AB
  • 802.1D-2
  • 802.1p
  • 802.1Q
  • 802.1s
  • 802.1w
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3z
  • 802.3ae
  • 802.3ba
  • 802.3ah
  • 802.3ad

Safety:

  • CAN/CSA-22.2 No. 60950-00/UL 1950 Third Edition, Safety of Information Technology Equipment
  • EN 60825-1 Safety of Laser Products-Part 1: Equipment Classification, Requirements, and User's Guide
  • EN 60950 Safety of Information Technology Equipment
  • IEC 60950-1 (2001) Safety of Information Technology Equipment (with country deviations)
  • EN 60825-1 +A1+A2 (1994) Safety of Laser Products-Part 1: Equipment Classification
  • EN 60825-2 (2000) Safety of Laser Products-Part 2: Safety of Optical Fiber Comm. Systems
  • C-UL to CAN/CSA 22.2 No.60950-1 (Second Edition)
  • TUV/GS to EN 60950-1, Amendment A1-A4, A11
  • CE-IEC60950-1, all country deviations

EMC:

  • AS/NZS CISPR22:2009
  • EN 55022 2006+A1:2007 European Radiated Emissions
  • FCC 47CFR , Part 15 Class A (2009) USA Radiated Emissions
  • VCCI-V-3/2009.04 and V-4/2009.04 Japanese Radiated Emissions
  • BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
  • EN 300 386 V1.5.1 Telecom Network Equipment - EMC requirements
  • ICES-003 Issue 4, Feb 2004 Canada Radiated Emissions
  • CISPR 24:1997/A1:2001/A2:2002 IT Equipment Immunity Characteristics

Immunity:

  • EN 55024:1998/A1:2001/A2:2003 Information Technology Equipment Immunity Characteristics
  • EN-61000-3-2 (2006) Power Line Harmonics
  • EN-61000-3-3 +A1 +A2 +A3 (1995) Power Line Voltage Fluctuations
  • EN-61000-4-2 +A1 +A2 (1995) Electrostatic Discharge
  • EN-61000-4-3 +A1+A2 (2002) Radiated Immunity
  • EN-61000-4-4 (2004) Electrical Fast Transients
  • EN-61000-4-5 (2006) Surge
  • EN-61000-4-6 (2007) Immunity to Conducted Disturbances
  • EN-61000-4-11 (2004) Voltage Dips and Sags
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
