IOGEAR

IOGEAR GUD3C02B Accessories

SKU:

GUD3C02B

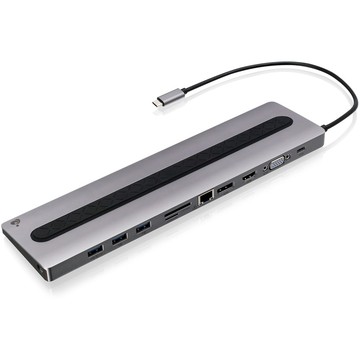

Cables, Connectors, and Adapters, IOGEAR, Dock Pro 100 USB-C 4K Ultra-Slim Station, for Notebook/Tablet/Smartphone, 100 W, USB 3.1 Type C, 4 x USB Ports, 3 x USB 3.0, USB Type-C, Network (RJ-45), HDMI, VGA, DisplayPort, Audio Line In, Audio Line Out, Wired
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Parts and accessories from IOGEAR.
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wired
Charging Capability Yes
Device Supported
  • Smartphone
  • Tablet
  • Notebook
Screen Mode Supported 4K
Supported Resolutions 3840 x 2160
Interfaces/Ports
Host Interface USB 3.1 Type C
Audio Line In Yes
Audio Line Out Yes
Total Number of USB Ports 4
Number of USB 3.0 Ports 3
USB Type-C Yes
USB Type-C Detail Upstream Port: Built-in USB 3.1 Type-C cable, Downstream Port: 1 x USB-C port (charging only)
Network (RJ-45) Yes
VGA Yes
DisplayPort Yes
Number of DisplayPort Outputs 1
HDMI Yes
Number of HDMI Outputs 1
USB Power Delivery 100W
Software
Operating System Supported
  • Windows 10
  • ChromeOS
  • Mac OS X 10.10.5 Yosemite
Power Description
Maximum Power Supply Wattage 100 W
Physical Characteristics
Height 0.50"
Depth 11.02"
Length 2.9"
Weight (Approximate) 10.40 oz
Miscellaneous
Package Contents
  • Dock Pro 100 USB-C 4K Ultra-Slim Station
  • 1 x Quick Start Guide
  • 1 x Warranty Card
Additional Information
  • Upstream Port - USB-C|Built-in USB 3.1 Type-C cable
  • Upstream Port - Cable Length|1ft
  • Downstream Port - HDMI|1x HDMI port (v.1.4 spec compliant, up to 3840x2160@30Hz)
  • Downstream Port - DisplayPort|1x DisplayPort port (v.1.2 spec compliant w/DP++, up to 3840x2160@30Hz)
  • Downstream Port - VGA|1x VGA port (up to 1920x1200@60Hz)
  • Downstream Port - Ethernet|1x Gigabit Ethernet port
  • Downstream Port - Card Reader|Supports SD/SDHC/SDXC & Micro SD @ UHS-I class, MMC
  • Downstream Port - USB-A|3x USB 3.0 A ports, 1 port with BC1.2 charging
  • Downstream Port - USB-C|1x USB-C port (charging only)
  • Downstream Port - Audio|1 x 3.5mm (in/out shared)
  • Power - Power Delivery Pass-Thru|100W (A total of up to 85W can be charged to the laptop after deduction of max 15W used by the dock)
  • Operating System Requirements - Windows|Windows 7 / 8 / 8.1 / 10
  • Operating System Requirements - Mac|Mac OS X 10.10.5+
  • Unit Package Dimensions - Width|13.4"" (34 cm)
  • Unit Package Dimensions - Height|1.4"" (3.5 cm)
  • Unit Package Dimensions - Depth|4.5"" (11.5 cm)
  • Master Carton - Width|8.6"" (22 cm)
  • Master Carton - Height|14.17"" (36 cm)
  • Master Carton - Depth|5.1"" (13 cm)
  • Master Carton - Master Carton Qty.|6
  • Weight - Master Carton Wt.|6.4 lbs (2.9 kg)
  • Weight - Unit Pack Wt.|0.9 lbs (0.42 kg)
System Requirements System Requirements
  • USB-C compatible laptops with DP Alt-Mode support
  • USB-C AC Adapter from Laptop is needed for Power Delivery Pass-Through Function
  • Only one additional video output can be utilized for extended desktop using Mac OS
  • For dual screen extended desktop in Windows, you must use HDMI with DisplayPort
  • When VGA output is utilized, only one additional extended desktop screen will be available
  • Compatible with USB-C and Thunderbolt 3 laptop
Operating System Requirements
  • Windows 10, 11
  • Mac OS X 10.10.5+ (MST is not supported by Mac OS)
  • Google Chrome OS
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin Vietnam
Warranty
Limited Warranty 1 Year
