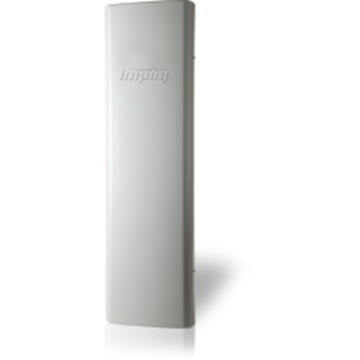

Impinj Speedway xPortal STDI

The Impinj Speedway xPortal RFID Reader offers a revolutionary solution for efficient item tracking in diverse environments including retail, hospitals, and logistics. Combining advanced Impinj Autonomous technology and a compact, low-profile design, this reader easily adapts to various spaces while delivering superior performance. Weighing less than 6.5 lbs, it can be mounted in multiple configurations to optimize space without compromising readability. With its Autopilot feature, the xPortal automatically adjusts to its surroundings, ensuring outstanding read quality that meets the needs of demanding applications.

• Compact Design: Only 30.5 x 8.75 x 2 inches and weighs under 6.5 lbs.
• Advanced Antenna Technology: Utilizes Impinj’s Dual-Linear Phased Array for superior read coverage.
• Autopilot Technology: Automatically optimizes performance based on tag presence.
• Flexible Installation: Multiple mounting options and Power over Ethernet (PoE) support.
• Environmentally Friendly: 75% lower energy costs compared to competitors.

• Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
• Operating Regions: US, Canada, Europe (865-868 MHz)
• Dimensions: 30.5 x 8.75 x 2 in (77.5 x 22.2 x 5 cm)
• Weight: 6.5 lbs (3 kg)
• Transmitted Power: FCC +10 to +28.5 dBm, ETSI +10 to +27.5 dBm
• Operating Temperature: -20 °C to +50 °C
• Humidity: 5% to 95%, non-condensing
• Environmental Sealing: IEC IP52
• Power Source: Power over Ethernet (PoE) or external power supply
• Management Interfaces: Impinj Web Management UI, SNMPv2, USB Flash Drive
