Honeywell

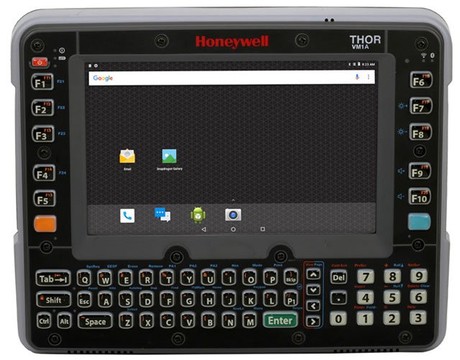

VM1A Outdoor Resistive Android ML GMS

SKU:

VM1A-L0N-1B3A20F

Configured with 4 GB RAM and 32 GB of flash memory, the Honeywell VM1A-L0N-1B3A20F is a vehicle-mounted computer built around an octa-core Snapdragon 660 processor running at 2.20 GHz. Its 8-inch LED touchscreen resolves at 1280 x 800 WXGA and is readable indoors and outdoors, paired with an integrated 64-key QWERTY keyboard for eyes-up data entry from the forklift seat. IEEE 802.11a/b/g/n/ac wireless with external antenna connections and Bluetooth handle connectivity, while the port set adds RJ-45, serial, USB, CANbus, microphone and headphone interfaces. A microSD slot extends on-board storage. Running Android 8.0 Oreo, the unit measures 10.6 in long by 8.4 in wide by 1.7 in deep and weighs 4.63 lb, suited to warehouse, manufacturing and intermodal vehicle-mount deployments, and is backed by a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Thor VM1A is a rugged Android-based vehicle-mount computer designed for forklift operators, distribution managers, and IT teams working in warehouses, manufacturing facilities, ports, and intermodal environments. Powered by a 2.2 GHz Qualcomm Snapdragon 660 octa-core processor with 4 GB RAM and 32 GB Flash, it delivers the sustained performance these demanding workflows require. The 8" WXGA LED touchscreen — available at 400 NIT for indoor use or 900 NIT for outdoor visibility — keeps critical data readable in any lighting condition, while IEEE 802.11a/b/g/n/ac 2x2 MIMO WLAN and Bluetooth 5.0 maintain continuous wireless connectivity. Built to IP66 sealing standards and rated for operation from -30°C to 50°C, the VM1A handles extreme conditions without compromise. The Smart Dock enables rapid vehicle-to-vehicle transfer without disturbing cabling, and the field-replaceable front panel allows in-house staff to service common touchscreen and keyboard issues on-site, reducing downtime and total cost of ownership. Built on the Mobility Edge platform, the VM1A supports Android upgrades from Android 8 through Android R with extended security update availability.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Connection: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Core Octa-core (8 Core)
Processor Type Snapdragon 660
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 8"
Graphics Modes WXGA
Display Screen Type LED
Touchscreen Yes
Display Resolution 1280 x 800
Network & Communication
Antenna Form Factor External
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Interfaces/Ports
Network (RJ-45) Yes
Serial Yes
USB Yes
Microphone Yes
Headphone Yes
CANbus Yes
Keyboard/Keypad
Number of Keys 64
Keyboard Type QWERTY
Keyboard Form Factor Integrated
Built-in Devices
Built-in Devices Speaker
Software
Operating System Android 8.0 Oreo
Physical Characteristics
Height 1.7"
Width 8.4"
Length 10.6"
Weight (Approximate) 4.63 lb
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document vm1a.pdf VM1A-L0N-1B3A20F  (PDF)
FAQs
ico-plus ico-minus
What wireless connectivity does the Honeywell Thor VM1A support?
The Thor VM1A includes IEEE 802.11 a/b/g/n/ac 2x2 MIMO Wi-Fi (Wi-Fi Alliance certified), Bluetooth Class 1.5 V5.0 with BLE, and integrated NFC. It also has dual internal antennas and supports dual external remote and direct-connect antenna accessories.
How rugged is the Honeywell Thor VM1A, and what environments is it designed for?
The Thor VM1A is independently certified to IP66 for moisture and particle intrusion, rated for operating temperatures of -30°C to 50°C (-22°F to 122°F), and tested to MIL-STD-810F for vibration on composite wheeled vehicles and SAE-J1455 for shock. It is built for forklift and vehicle-mount use in warehouses, manufacturing facilities, ports, and intermodal environments.
What display options are available on the Honeywell Thor VM1A?
The Thor VM1A features a 20 cm (8 in) WXGA LED backlit display with a standard 400 NIT indoor configuration and an optional 900 NIT outdoor display. Both resistive and capacitive PCAP multi-touch touch panel options are available, and an optional industrial resistive touchscreen with integrated defroster is offered for cold storage and freezer environments.
What wired I/O ports does the Honeywell Thor VM1A provide through its dock?
The Enhanced Dock provides 2x powered RS-232 COM ports, 1x USB 2.0 powered host port Type A, 3 additional USB 2.0 powered host ports, 1x USB 2.0 Client port, 1x Ethernet RJ45 port, 1x CAN-bus port, 1x headset port, plus DC power input and ignition control input. The Standard Dock provides 2x powered RS-232 COM ports, 1x USB 2.0 powered host port, 1x USB 2.0 Client port, 1x CAN-bus port, 1x headset port, DC power input, and ignition control input.
How does the Honeywell Thor VM1A's Smart Dock and field-replaceable front panel reduce downtime?
The Smart Dock allows the computer to be mounted or removed in seconds without touching cabling, so units can be quickly shifted between vehicles as workloads change. The field-replaceable front panel lets on-site personnel service the most wear-prone components — such as the touchscreen or keyboard — without sending the device to a repair depot.
What is the warranty and software support lifecycle for the Honeywell Thor VM1A?
The Thor VM1A carries a one-year factory warranty, with optional service programs available. Running Android 8 (Oreo), it is upgradable through Android R, and Honeywell Mobility Edge provides five more years of security updates than a typical Android device to extend product lifecycle and protect the investment.
