Honeywell

Honeywell Thor VM3A, Indoor, Resistive, Wi-Fi 5, Bluetooth 5.0, Android, GMS

SKU:

VM3A-L0N-1A1A20F

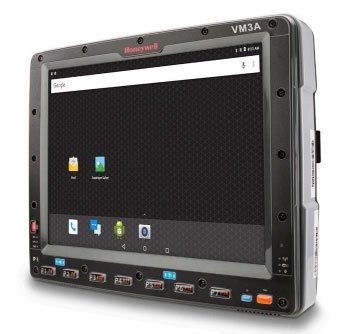

Configured with a resistive touchscreen and rated IP66 for dust and water ingress protection, the Honeywell VM3A-L0N-1A1A20F is a vehicle-mounted computer running Android with Google Mobile Services on a Qualcomm Snapdragon 660 octa-core processor clocked at 2.20 GHz. It pairs 4 GB of RAM with 32 GB of flash storage and accepts microSD expansion, while the 12.1-inch LED display delivers 1024 x 768 XGA resolution for indoor and outdoor readability. Wireless connectivity follows IEEE 802.11a/b/g/n/ac, and the unit also carries Bluetooth alongside wired RJ-45, serial and USB ports with an integrated microphone and speaker. The integrated keyboard and internal antenna keep the chassis compact at 12.5 in wide, 10.2 in tall and 2.4 in deep, weighing 6.61 lb, and the unit is manufactured in Malaysia.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Thor VM3A is a full-sized Android vehicle-mounted computer built for fleet operators, warehouse managers, and IT teams running demanding forklift and material handling workflows in distribution centers, manufacturing facilities, cold-chain environments, and freight operations. Powered by a 2.2 GHz Qualcomm Snapdragon 660 octa-core processor with 4 GB RAM and 32 GB flash storage, it delivers responsive performance for enterprise applications around the clock. The 12.1-inch XGA LED display at 1024 x 768 resolution is available in 400 NIT indoor and 900 NIT outdoor variants, with an optional integrated defroster for cold storage transitions. IEEE 802.11a/b/g/n/ac 2x2 MIMO WLAN, Bluetooth 5.0, NFC, and an RJ-45 port keep vehicles connected across the facility. IP66-certified sealing and MIL-STD-810F vibration ratings protect the unit in harsh conditions, while the Smart Dock and field-replaceable front panel reduce servicing time and total cost of ownership.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Connection: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Google Mobile Services (GMS) Yes
Processor & Chipset
Processor Core Octa-core (8 Core)
Processor Type Snapdragon 660
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 12.1"
Graphics Modes XGA
Display Screen Type LED
Touchscreen Yes
Touchscreen Type Resistive
Display Resolution 1024 x 768
Network & Communication
Antenna Form Factor Internal
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Interfaces/Ports
Network (RJ-45) Yes
Serial Yes
USB Yes
Microphone Yes
Keyboard/Keypad
Keyboard Form Factor Integrated
Built-in Devices
Built-in Devices Speaker
Power Description
Power Source Power Supply
Software
Operating System Android
Physical Characteristics
Height 10.2"
Width 12.5"
Depth 2.4"
Weight (Approximate) 6.61 lb
Miscellaneous
Ingress Protection (IP) Rating IP66
Country of Origin Malaysia
Documents
ico-plus ico-minus
Product document vm3a.pdf MOD-THOR-VM3A
FAQs
ico-plus ico-minus
What wireless connectivity does the Honeywell Thor VM3A support for in-vehicle use?
The Thor VM3A includes 802.11a/b/g/n/ac Wi-Fi with 2x2 MIMO, Bluetooth 5.0 with BLE, and integrated NFC, with both dual internal antennas and SMA connectors for optional external WLAN antennas.
Is the Honeywell Thor VM3A suitable for cold-storage and freezer environments?
Yes, the Thor VM3A operates across -20°C to +50°C and is available with an optional integrated screen defroster on the resistive touchscreen variant to prevent condensation during frozen-to-ambient transitions.
What display options are available on the Honeywell Thor VM3A, and how bright are they?
The Thor VM3A uses a 12.1-inch XGA (1024 x 768) LED backlit display available in an indoor 400-nit version and an outdoor 900-nit version, with touch panel choices of standard resistive, optional projected capacitive multitouch, or optional resistive with integrated defroster for cold storage.
How does the Honeywell Thor VM3A simplify fleet servicing and reduce downtime?
The Smart Dock feature allows the computer to be mounted and removed in seconds without disturbing cabling, and the field-replaceable front panel lets on-site personnel service worn or damaged touchscreen and keyboard components without sending the unit to a repair depot.
What is the input power range for the Honeywell Thor VM3A, and does it protect against vehicle battery drain?
The Thor VM3A accepts 10 to 60V DC isolated input, with optional external converters for AC (90–240V AC) and extended-range DC (60–150V DC), and includes built-in ignition control to prevent draining the vehicle battery.
What factory warranty and software platform does the Honeywell Thor VM3A include?
The Thor VM3A comes with a one-year factory warranty and is built on Honeywell's Mobility Edge platform, which provides a common hardware and software foundation across Honeywell enterprise devices and includes tools such as Terminal Emulator, Enterprise Browser, Application Launcher and Lockdown, Provisioning Tools, Honeywell Mobility SDKs, and support for third-party MDM solutions.
