Honeywell

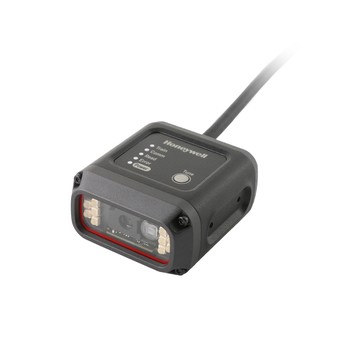

Scanner Only: Tethered Stationary Industrial. 1D,

SKU:

HF800HD-R1-1V

Rated IP65 for dust and liquid ingress protection, the Honeywell HF800HD-R1-1V is a fixed-mount 2D industrial barcode reader connecting via Ethernet and Serial interfaces. Its 500K-pixel imager captures images at 60 fps and reads 1D and 2D symbologies -- including DPM, PDF417, Aztec, QR Code, Maxicode and DataMatrix -- at distances up to 18.90 in, with a minimum element resolution of 4 mil on Code 39 and a 10 mil to 20 mil range on DataMatrix. The AutoLearn function allows single-button image configuration, and DataMax software is included. Weighing 9.35 oz in a fixed-mount form factor, the unit suits PCB production tracking, food production process management and logistics verification in space-constrained industrial environments, and is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell HF800 is a fixed-mount 2D industrial barcode scanner designed for procurement and IT buyers who need reliable, high-speed reading in demanding production and logistics environments. Built for sectors including electronics manufacturing, food production, and supply-chain logistics, it reads all major 1D and 2D symbologies as well as the most challenging Direct Part Mark codes on PCBs and precision components. Its 500K-pixel CMOS imager captures images at 60 fps, while the IP65-rated zinc-alloy housing ensures dependable operation in harsh, space-constrained installations. Ethernet and serial connectivity support flexible integration into existing plant networks, and the AutoLearn one-button tuning function — backed by DataMax configuration software — keeps setup fast and straightforward. A 3-year limited warranty underpins long-term deployment confidence.

Main Features

  • Rugged: Industrial

  • Connection: Serial, Ethernet

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 2D
  • 1D
Barcode Symbology Supported Decode Capability:
  • DPM
  • PDF417
  • Aztec
  • QR Code
  • Maxicode
  • Datamatrix
  • 2D Barcodes
  • 1D Barcode
Image Sensor Type Imager
Scanning Distance 18.90"
Minimum Element Resolution (Code 39) 4 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 20 mil
Interfaces/Ports
Host Interface
  • Ethernet
  • Serial
Physical Characteristics
Form Factor Fixed Mount
Weight (Approximate) 9.35 oz
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage Industrial
Platform Supported PC
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
FAQs
ico-plus ico-minus
What barcode symbologies can the Honeywell HF800 Industrial Barcode Scanner decode?
The HF800 reads 1D barcodes, PDF417, and 2D codes including QR Code, Datamatrix, Maxicode, and Aztec, and it is also capable of decoding difficult Direct Part Marks (DPM).
What connectivity interfaces does the Honeywell HF800 support for integration into an existing line?
The HF800 provides RS232, RS485, and Ethernet ports, and also supports I/O port input and output, giving flexible options for integration into industrial networks or direct PC connections.
How does the Honeywell HF800 hold up in harsh factory or warehouse environments?
The HF800 carries an IP65 rating, is housed in zinc alloy, and operates across a temperature range of 0°C to 50°C, making it suitable for dusty, wet, or otherwise demanding industrial conditions.
What mounting orientations and distance variants are available for the Honeywell HF800?
The HF800 is offered in 0-degree (horizontal) and 90-degree (vertical) mounting versions, and in three working-distance variants — HD, SR, and ER — each with its own depth-of-field range for Code 39, UPC, and Datamatrix targets.
How is the Honeywell HF800 configured after installation?
Configuration is handled through Honeywell's DataMax software, and the scanner also includes an AutoLearn (Tune) button that lets a user complete image setup with a single button press without requiring a PC connection.
What power supply does the Honeywell HF800 require, and is one included in the box?
The HF800 runs on 10VDC to 30VDC at a maximum of 5W; the Quick Start Guide notes that a power supply must be ordered separately if needed.
