Honeywell

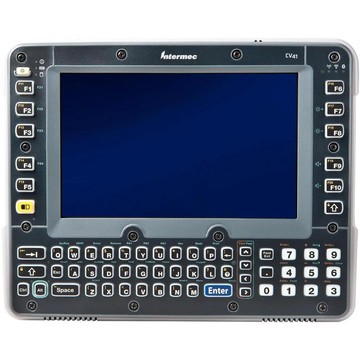

HONEYWELL, NCNR, EOL, CV41 FIXED MOUNT MOBILE COMPUTER, WES 2009, 2GB RAM, 8GB SSD, INDOOR DISPLAY, 64 KEY QWERTY, (WWAN NOT INCLUDED), 802.11 INTERNAL ANTENNA, US, INTERMEC CLIENT PACK

SKU:

CV41AWC1A1AUSWEA

Fitted with an IP66-rated enclosure and integrated ignition sensing with UPS back-up battery, the Intermec CV41AWC1A1AUSWEA is a fixed vehicle-mount computer built for forklift and distribution center deployments running Windows Embedded Standard 2009. An Intel Atom Z530 processor at 1.60 GHz pairs with 2 GB of RAM and an 8 GB solid state drive, while the 8-inch LED touchscreen delivers WVGA 800 x 480 resolution for clear visibility in the cab. The 64-key integrated QWERTY keyboard is optimized for terminal emulation, and connectivity covers IEEE 802.11a/b/g via internal antenna, Bluetooth, serial, USB, headphone, and a CANbus interface for fleet management applications. Integrated microphone and speaker support Vocollect voice-directed workflows. Measuring 10.6 in wide by 8.4 in tall by 2.6 in deep and weighing 4.63 lb, the unit carries CCXv4 and Wi-Fi certification, UL 60950-1, IEC 60950-1, RoHS compliance, and a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell CV41 is a vehicle-mounted terminal built for warehouse operations managers and forklift operators who demand reliable, always-on computing in demanding industrial environments. Designed to mount on forklifts and other material handling vehicles, it serves distribution centers, cold storage facilities, logistics operations, and manufacturing floors. Powered by an Intel Atom Z530 1.6 GHz processor running Windows CE 6.0, it delivers responsive performance for warehouse management system connectivity via the pre-loaded Intermec Client Pack. The 20 cm (8 in) WVGA 800x480 LED-backlit, glove-compatible touchscreen provides clear visibility indoors, while IP66 sealing and MIL STD 810F-rated shock and vibration protection ensure durability across harsh environments. An integrated UPS battery provides up to 30 minutes of operating time during vehicle switches, and ignition sensing means the terminal is ready the moment an operator turns the key.

Main Features

  • RFID: Yes

  • Operation System: Windows

  • Rugged: Industrial

  • Connection: Bluetooth, USB

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Processor & Chipset
Processor Manufacturer Intel
Processor Model Z530
Processor Type Atom
Processor Speed 1.60 GHz
Memory
Standard Memory 2 GB
Memory Card Supported SD
Storage
Solid State Drive Capacity 8 GB
Display & Graphics
Screen Size 8"
Graphics Modes WVGA
Display Screen Type LED
Touchscreen Yes
Display Resolution 800 x 480
Network & Communication
Antenna Form Factor Internal
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g
Interfaces/Ports
Serial Yes
USB Yes
Headphone Yes
CANbus Yes
Keyboard/Keypad
Number of Keys 64
Keyboard Type QWERTY
Keyboard Form Factor Integrated
Built-in Devices
Built-in Devices
  • Microphone
  • Speaker
Power Description
Power Source Power Supply
Software
Operating System Windows Embedded Standard 2009
Physical Characteristics
Height 8.4"
Width 10.6"
Depth 2.6"
Weight (Approximate) 4.63 lb
Miscellaneous
Certifications & Standards
  • CCXv4 Certified
  • Wi-Fi Certified
Safety:
  • UL 60950-1
  • CSA C22.2 no. 60950-1
  • EN 60950-1
  • IEC 60950-1
Emissions:
  • FCC Part 15, subpart B, class A
  • EN 55022, Class A (CISPR22)
  • AS/NZS 3548, Class A (CISPR22)
  • GB9254
Immunity:
  • EN 55024:1998 (enhanced: ESD to 8kV direct & 15kV air)
  • GB 9254-2008
Radio:
  • FCC Part 15, subpart C
  • IC RSS210, 102
  • EN 300 328
Environmentally Friendly Yes
Environmental Certification RoHS
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mod-cv41-honeywell-vehicle-mount-terminals-datasheet.pdf CV41AWC1A1AUSWEA Product document mod-cv41-honeywell-vehicle-mount-terminals-user-manual.pdf CV41AWC1A1AUSWEA Product document mod-cv41-honeywell-vehicle-mount-terminals-datasheet.pdf MOD-CV41 Product document mod-cv41-honeywell-vehicle-mount-terminals-user-manual.pdf MOD-CV41
FAQs
ico-plus ico-minus
What wireless connectivity options does the Honeywell CV41 Vehicle-Mounted Terminal support?
The CV41 includes an 802.11 a/b/g Wi-Fi radio with CCXv4 certification and WPA/WPA2 security, plus integrated Bluetooth 2.0+EDR. An optional Qualcomm Gobi 2000 WWAN/GPS radio is also available for wide-area connectivity beyond the facility.
What is the operating temperature range of the Honeywell CV41, and is it suitable for cold storage environments?
The CV41 operates from -30°C to +50°C (-22°F to +122°F), and an optional touchscreen defroster is available for cold storage and freezer environments.
What display does the Honeywell CV41 come with, and are there any display options?
The standard display is a 20 cm (8 in) WVGA 800x480 LED-backlit panel rated at 400 NIT with a light sensor for automatic brightness adjustment. A 900 NIT outdoor display is available as an option.
What interfaces and ports are available on the Honeywell CV41 Vehicle-Mounted Terminal?
The CV41 provides one USB 2.0 Host port, one USB 1.1 Client port, two RS-232 COM ports, one CAN-BUS port, one headset port, DC power input and ignition input, and RF antenna ports for Wi-Fi, WWAN, and GPS.
What is included in the box with the Honeywell CV41?
The package includes the CV41 Fixed Vehicle Mount Computer and a pre-licensed Intermec Client Pack with an integrated keyboard.
Can the Honeywell CV41 support voice-directed work, and which scanner and RFID configurations are compatible?
Yes, the CV41 supports Vocollect VoiceCatalyst with a wireless headset, along with integrated microphone and stereo speakers. For data collection, it supports tethered serial scanners, tethered USB barcode scanners, tethered RFID readers, and Bluetooth scanners.
