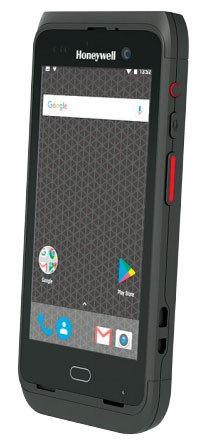

Honeywell

CT40XP,WLAN,4G/32G,flex range,audio jack

SKU:

CT40P-L0N-28R11AF

Fitted with the FlexRange N6803 imager, the Honeywell CT40P-L0N-28R11AF reads 1D and 2D barcodes from close range out to 32.8 feet, covering the scan demands of retail inventory, in-store merchandising and last-mile delivery. The device runs on an octa-core Snapdragon 660 processor with 4 GB of RAM and 32 GB of flash, backed by SDXC/SDHC/SDIO expansion. Its 5-inch LED touchscreen resolves at 1920 x 1080 in HD, protected by Gorilla Glass 5, while a 13 Megapixel rear camera and 8 Megapixel front camera support inspection and training tasks. Wireless connectivity spans IEEE 802.11 a/b/g/n/ac, Bluetooth 5.0 BLE, NFC, LTE/UMTS/HSPA+ cellular, and GPS with BeiDou/Galileo/GLONASS satellite support. The 4020 mAh Li-Ion battery at 3.85 V supports warm swap without powering down the OS. Rated IP65 and IP67 and tested to multiple 1.2 m drops to concrete across -10°C to +50°C, the 10.19 oz phone-size device operates from -4°F (-20°C) to 122°F (50°C) and carries a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell CT40 XP is a phone-sized Android enterprise handheld computer built for store associates, logistics workers, and other highly mobile professionals who need dependable performance across retail, warehousing, and last-mile delivery environments. Powered by a 2.2 GHz Qualcomm Snapdragon 660 octa-core processor with 4 GB RAM and 32 GB Flash, it runs Android and supports upgrade to Android 12, protecting the deployment investment over a long lifecycle through the Mobility Edge platform. The FlexRange imager captures 1D and 2D barcodes from a few centimeters up to 10 m (32.8 ft), while IP67 and IP65 sealing, drop survivability to 1.8 m (6 ft) per MIL-STD-810G with protective boot, and a 4020 mAh warm-swappable battery delivering 12+ hours of operation keep workers productive through demanding shifts.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Phone

  • Range: Standard Range

  • Connection: Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 2D
  • 1D
Scan Engine Model N6803
Image Sensor Type Imager
Scanner Range FlexRange
Sensor Type
  • Ambient Lighting
  • Proximity
  • Accelerometer
  • Gyroscope
Features
  • Push-to-talk
  • Gorilla Glass 5
Drop Specification

Multiple 1.2 m (4 ft) drops to concrete at -10°C to +50°C (+14°F to +122°F).

Processor & Chipset
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • SDXC
  • SDHC
  • SDIO
Display & Graphics
Screen Size 5"
Screen Mode HD
Screen Resolution 1920 x 1080
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Keyboard/Keypad
Buttons & Keys
  • Hard Keys: Volume up/down key, left/right scan, power button, push to talk button
  • Soft Key: On-screen scan button, reprogrammable into an application quicklaunch key
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 BLE
Near Field Communication (NFC) Yes
Cellular Data Connectivity Technology
  • LTE
  • UMTS
  • HSPA+
GPS Yes
Global Navigation Satellite System (GNSS) Supported BeiDou/Galileo/GLONASS
Camera
Front Camera Yes
Front Camera Resolution 8 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android
Power Description
Power Source Battery
Battery Information
Battery Capacity 4020 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.85 V
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Phone-size
Rugged Yes
Weight (With Battery) 10.19 oz
Miscellaneous
Package Contents
  • CT40 XP Enterprise Mobile Computer
  • Battery
Ingress Protection (IP) Rating
  • IP65
  • IP67
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
FAQs
ico-plus ico-minus
What barcode scanning range does the Honeywell CT40 XP support, and which symbologies can it read?
The Honeywell CT40 XP uses the FlexRange N6703 imager to capture both 1D and 2D barcode symbologies at distances from a few centimeters up to 10 m (32.8 ft).
How rugged is the Honeywell CT40 XP, and what is its ingress protection rating?
The CT40 XP survives multiple drops from 1.8 m (6 ft) to concrete per MIL-STD-810G when used with its protective boot, and is independently certified to meet both IP67 and IP65 standards for moisture and particle intrusion.
What wireless connectivity options does the Honeywell CT40 XP offer?
The CT40 XP supports Wi-Fi (IEEE 802.11 a/b/g/n/ac), WWAN with LTE Advanced, Bluetooth 5.0 with a second BLE beacon, NFC, and GPS with simultaneous GNSS receiver support for GPS, GLONASS, Galileo, and BeiDou.
What is the battery life and memory configuration of the Honeywell CT40 XP?
The CT40 XP is equipped with a 4020 mAh Li-Ion battery rated for 12+ hours of operation, 4 GB DDR4x RAM, and 32 GB Flash storage expandable via a user-accessible microSD card up to 512 GB.
How does the Honeywell CT40 XP's warm swap feature benefit high-volume operations?
Warm swap allows workers to replace the battery without powering off the operating system, eliminating device downtime during shift changes or battery swaps; a second BLE beacon also enables the Device Finder feature to locate the unit even when the battery is fully drained.
What is included in the box with the Honeywell CT40 XP, and what is the warranty?
The CT40 XP ships with the handheld computer and a battery, and is covered by a one-year factory warranty.
