Honeywell

6603ER Extended Range No Camera 5EN231F

SKU:

CN80G-L1N-5EN231F

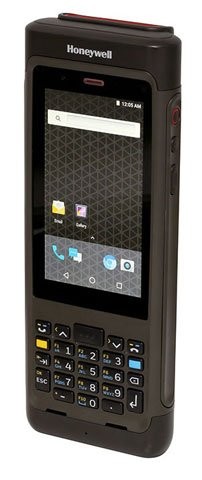

Configured with the 6603ER extended range imager, the Honeywell CN80G-L1N-5EN231F handheld terminal delivers 1D/2D scanning at read ranges from 6 in to 50 ft, making it suited to wide-aisle warehouse environments where standard-range imagers fall short. It carries 4 GB of RAM and 32 GB of flash storage, with microSD, microSDHC, and microSDXC expansion supported. The 23-key function numeric keypad pairs with a 4.2-inch FWVGA LCD touchscreen at 854 x 480 resolution, covering both legacy key-entry workflows and touch-based applications. Android (Non-GMS, FIPS 140-2 compliant, non-incendive configuration) runs on the Mobility Edge platform with lifecycle support across five Android generations. Bluetooth and NFC are both present, and the unit weighs 1.10 lb. A one-year limited warranty applies.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Dolphin CN80 is an ultra-rugged Android handheld computer designed for logistics, warehouse, cold storage, and field mobility teams that demand reliable performance in demanding environments. Built on the Honeywell Mobility Edge platform, it bridges the gap between legacy keypad-driven workflows and modern touch applications by pairing a 106.7 mm (4.2 in) outdoor-viewable LCD touchscreen with a choice of 23-key numeric or 40-key QWERTY keypad — operable by finger, glove, or stylus. A 2.2 GHz Qualcomm Snapdragon 660 octa-core processor, 3 GB RAM, and 32 GB Flash keep applications running responsively, while a 5800 mAh Li-Ion battery sustains productivity across multiple shifts. IP65/IP67 sealing and a 2.4 m (8 ft) drop rating to concrete make it built to endure the harshest operational conditions.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Range: Standard Range

  • Connection: Bluetooth

  • Camera: None

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Image Sensor Type Imager
Scanner Range Extended Range
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • microSDXC
  • microSDHC
Display & Graphics
Screen Size 4.2"
Screen Mode FWVGA
Screen Resolution 854 x 480
Display Screen Type LCD
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 23
Keyboard Type Function Numeric
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Camera
Rear Camera No
Software
Operating System Android
Battery Information
Battery Included Yes
Physical Characteristics
Height 1.3"
Width 3.1"
Weight (Approximate) 1.10 lb
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document cn80g-2025.pdf CN80G-L1N-5EN231F  (PDF)
FAQs
ico-plus ico-minus
What wireless connectivity options does the Honeywell Dolphin CN80 support?
The Dolphin CN80 includes IEEE 802.11 a/b/g/n/ac Wi-Fi with 2x2 MIMO, Bluetooth Class 1.5 V5.0 with BLE, integrated NFC, integrated Zigbee 3.0, and a WWAN radio supporting LTE CAT13 downlink up to 400 Mbps and CAT5 uplink up to 75 Mbps across two micro-SIM slots.
How rugged is the Honeywell Dolphin CN80, and what environmental ratings does it carry?
The CN80 is independently certified to IP65 and IP67 standards for dust and moisture intrusion, and it exceeds 2,000 tumbles of 1.0 m (3.3 ft) per IEC 60068-2-32. The standard temperature unit operates from -20°C to 50°C (-4°F to 122°F), while a cold storage unit is also available.
What barcode scanning capabilities does the Honeywell Dolphin CN80 offer?
The CN80 supports 1D and 2D scanning via the Honeywell N6603ER Imager or the Honeywell EX20 Near/Far Imager, with the EX20 providing read ranges from 0.15 m to 15.2 m (6 in to 50 ft). An optional scan handle lets workers switch between handheld and pistol-grip operation.
What keypad and display options are available on the Honeywell Dolphin CN80?
The CN80 offers a choice of a 40-key QWERTY keypad or a 23-key numeric function keypad, paired with a 106.7 mm (4.2 in) FWVGA (854 x 480) outdoor-viewable LCD touchscreen that can be used with a finger, glove, or stylus.
What accessories are available for the Honeywell Dolphin CN80?
Honeywell offers one-bay and four-bay desktop charging and communication cradles, vehicle cradles and holders, a wireless charging vehicle cradle, snap-on communication and charging adapters, a removable scan handle, and various carrying devices.
What warranty and software management support comes with the Honeywell Dolphin CN80?
The CN80 includes a one-year factory warranty and ships with Honeywell Power Tools, Terminal Emulator, Enterprise Browser, Application Launcher and Lockdown, Provisioning Tools, and Honeywell Mobility SDKs for Android, Web, and Xamarin, along with support for third-party MDM solutions.
