Honeywell

4GB 32GB Numeric 6603ER Ext No cam 5EN24

SKU:

CN80G-L0N-5EN241F

Configured with 4 GB of RAM and 32 GB of flash storage, the Honeywell CN80G-L0N-5EN241F is a non-incendive, extended-range handheld terminal built for logistics, warehouse, and government field mobility on Android. Its extended-range 2D imager covers read distances from 6 in to 50 ft, and the 23-key function numeric keypad supports key-centric workflows alongside a 4.2-inch FWVGA LCD touchscreen resolving at 854 x 480. The unit withstands 3.0 m drops to concrete per MIL-STD 810G and 2,000 tumbles at 1.0 m, carrying IP65/IP67 dust and water ratings in a 1.10 lb chassis measuring 3.1 in wide by 1.3 in thick. Expandable storage via microSD, microSDHC, and microSDXC is supported, along with NFC and wireless connectivity. Manufactured in Taiwan, it carries a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

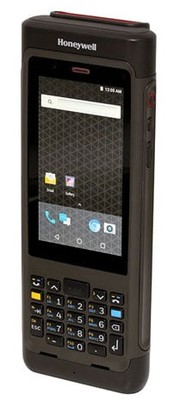

The Honeywell Dolphin CN80 is an ultra-rugged Android handheld computer designed for logistics, warehouse, cold storage, and field mobility teams that demand reliable performance in demanding environments. Built on the Honeywell Mobility Edge platform, it bridges the gap between legacy keypad-driven workflows and modern touch applications by pairing a 106.7 mm (4.2 in) outdoor-viewable LCD touchscreen with a choice of 23-key numeric or 40-key QWERTY keypad — operable by finger, glove, or stylus. A 2.2 GHz Qualcomm Snapdragon 660 octa-core processor, 3 GB RAM, and 32 GB Flash keep applications running responsively, while a 5800 mAh Li-Ion battery sustains productivity across multiple shifts. IP65/IP67 sealing and a 2.4 m (8 ft) drop rating to concrete make it built to endure the harshest operational conditions.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Range: Extended Range

  • Camera: None

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Image Sensor Type Imager
Scanner Range Extended Range
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • microSDXC
  • microSDHC
Display & Graphics
Screen Size 4.2"
Screen Mode FWVGA
Screen Resolution 854 x 480
Display Screen Type LCD
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 23
Keyboard Type Function Numeric
Network & Communication
Near Field Communication (NFC) Yes
Camera
Rear Camera No
Software
Operating System Android
Battery Information
Battery Included Yes
Physical Characteristics
Height 1.3"
Width 3.1"
Weight (Approximate) 1.10 lb
Miscellaneous
Country of Origin Taiwan
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document cn80g-2025.pdf CN80G-L0N-5EN241F  (PDF)
FAQs
ico-plus ico-minus
What wireless connectivity options does the Honeywell Dolphin CN80 support?
The Dolphin CN80 includes IEEE 802.11 a/b/g/n/ac Wi-Fi with 2x2 MIMO, Bluetooth Class 1.5 V5.0 with BLE, integrated NFC, integrated Zigbee 3.0, and a WWAN radio supporting LTE CAT13 downlink up to 400 Mbps and CAT5 uplink up to 75 Mbps across two micro-SIM slots.
How rugged is the Honeywell Dolphin CN80, and what environmental ratings does it carry?
The CN80 is independently certified to IP65 and IP67 standards for dust and moisture intrusion, and it exceeds 2,000 tumbles of 1.0 m (3.3 ft) per IEC 60068-2-32. The standard temperature unit operates from -20°C to 50°C (-4°F to 122°F), while a cold storage unit is also available.
What barcode scanning capabilities does the Honeywell Dolphin CN80 offer?
The CN80 supports 1D and 2D scanning via the Honeywell N6603ER Imager or the Honeywell EX20 Near/Far Imager, with the EX20 providing read ranges from 0.15 m to 15.2 m (6 in to 50 ft). An optional scan handle lets workers switch between handheld and pistol-grip operation.
What keypad and display options are available on the Honeywell Dolphin CN80?
The CN80 offers a choice of a 40-key QWERTY keypad or a 23-key numeric function keypad, paired with a 106.7 mm (4.2 in) FWVGA (854 x 480) outdoor-viewable LCD touchscreen that can be used with a finger, glove, or stylus.
What accessories are available for the Honeywell Dolphin CN80?
Honeywell offers one-bay and four-bay desktop charging and communication cradles, vehicle cradles and holders, a wireless charging vehicle cradle, snap-on communication and charging adapters, a removable scan handle, and various carrying devices.
What warranty and software management support comes with the Honeywell Dolphin CN80?
The CN80 includes a one-year factory warranty and ships with Honeywell Power Tools, Terminal Emulator, Enterprise Browser, Application Launcher and Lockdown, Provisioning Tools, and Honeywell Mobility SDKs for Android, Web, and Xamarin, along with support for third-party MDM solutions.
