Honeywell

Honeywell - CN80, 3GB, 32GB, QWERTY, EX20 Near Far Imager, Camera, 802.11abgn, WLAN, Bluetooth, Android 7, GMS, Client Pack, Standard Temperature, FCC

SKU:

CN80-L0N-2MC120F

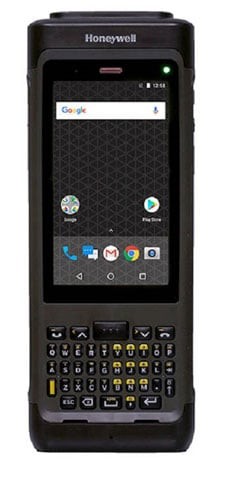

Fitted with a 40-key QWERTY keypad alongside its touchscreen, the Honeywell CN80-L0N-2MC120F runs Android 7.0 Nougat on 3 GB of RAM and 32 GB of flash memory, with microSD, microSDHC, and microSDXC expansion supported. Its EX20 imager delivers 1D and 2D barcode reads across a range of 0.15 m to 15.2 m (6 in to 50 ft), and a rear camera handles supplemental image capture. The 4.2-inch FWVGA LCD touchscreen resolves at 854 x 480 and is operable with finger, glove, or stylus. Wireless connectivity covers IEEE 802.11a/b/g/n WLAN, Bluetooth, and NFC. IP65/IP67 ingress ratings and a construction rated to withstand 2.4 m (8 ft) drops to concrete and 2,000 tumbles at 1.0 m (3.3 ft) suit warehouse, cold storage, and field mobility environments. The unit weighs 1.21 lb and ships with a battery pack, backed by a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Dolphin CN80 is an ultra-rugged Android handheld computer designed for logistics, warehouse, cold storage, and field mobility teams that demand reliable performance in demanding environments. Built on the Honeywell Mobility Edge platform, it bridges the gap between legacy keypad-driven workflows and modern touch applications by pairing a 106.7 mm (4.2 in) outdoor-viewable LCD touchscreen with a choice of 23-key numeric or 40-key QWERTY keypad — operable by finger, glove, or stylus. A 2.2 GHz Qualcomm Snapdragon 660 octa-core processor, 3 GB RAM, and 32 GB Flash keep applications running responsively, while a 5800 mAh Li-Ion battery sustains productivity across multiple shifts. IP65/IP67 sealing and a 2.4 m (8 ft) drop rating to concrete make it built to endure the harshest operational conditions.

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Connection: Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Image Sensor Type Imager
Memory
Standard Memory 3 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • microSDHC
  • microSDXC
Display & Graphics
Screen Size 4.2"
Screen Mode FWVGA
Screen Resolution 854 x 480
Display Screen Type LCD
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 40
Keyboard Type Alpha
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Bluetooth Yes
Near Field Communication (NFC) Yes
Camera
Rear Camera Yes
Software
Operating System Android 7.0 Nougat
Battery Information
Battery Included Yes
Physical Characteristics
Height 8.1"
Width 3.1"
Depth 1.6"
Weight (Approximate) 1.21 lb
Miscellaneous
Package Contents
  • Dolphin CN80 Mobile Computer
  • Battery Pack
Country of Origin China
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document cn80-new.pdf CN80-L0N-2MC120F  (PDF)
FAQs
ico-plus ico-minus
What wireless connectivity options does the Honeywell Dolphin CN80 support?
The Dolphin CN80 includes IEEE 802.11 a/b/g/n/ac Wi-Fi with 2x2 MIMO, Bluetooth Class 1.5 V5.0 with BLE, integrated NFC, integrated Zigbee 3.0, and a WWAN radio supporting LTE CAT13 downlink up to 400 Mbps and CAT5 uplink up to 75 Mbps across two micro-SIM slots.
How rugged is the Honeywell Dolphin CN80, and what environmental ratings does it carry?
The CN80 is independently certified to IP65 and IP67 standards for dust and moisture intrusion, and it exceeds 2,000 tumbles of 1.0 m (3.3 ft) per IEC 60068-2-32. The standard temperature unit operates from -20°C to 50°C (-4°F to 122°F), while a cold storage unit is also available.
What barcode scanning capabilities does the Honeywell Dolphin CN80 offer?
The CN80 supports 1D and 2D scanning via the Honeywell N6603ER Imager or the Honeywell EX20 Near/Far Imager, with the EX20 providing read ranges from 0.15 m to 15.2 m (6 in to 50 ft). An optional scan handle lets workers switch between handheld and pistol-grip operation.
What keypad and display options are available on the Honeywell Dolphin CN80?
The CN80 offers a choice of a 40-key QWERTY keypad or a 23-key numeric function keypad, paired with a 106.7 mm (4.2 in) FWVGA (854 x 480) outdoor-viewable LCD touchscreen that can be used with a finger, glove, or stylus.
What accessories are available for the Honeywell Dolphin CN80?
Honeywell offers one-bay and four-bay desktop charging and communication cradles, vehicle cradles and holders, a wireless charging vehicle cradle, snap-on communication and charging adapters, a removable scan handle, and various carrying devices.
What warranty and software management support comes with the Honeywell Dolphin CN80?
The CN80 includes a one-year factory warranty and ships with Honeywell Power Tools, Terminal Emulator, Enterprise Browser, Application Launcher and Lockdown, Provisioning Tools, and Honeywell Mobility SDKs for Android, Web, and Xamarin, along with support for third-party MDM solutions.
