HID

HID 5375AGN00-110315 Accessories

SKU:

5375AGN00-110315

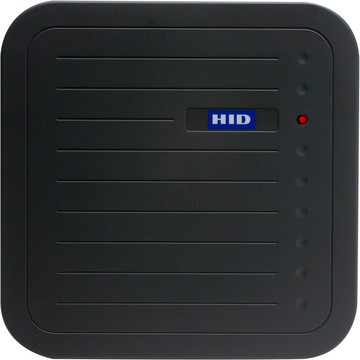

HID MaxiProx 5375 - Proximity - 6" Operating Range - 24 V DC
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from HID.
Technical Specifications
ico-plus ico-minus
Technical Information
Identification Method Proximity
Operating Range 6"
Controls/Indicators
Indicators & Controls
  • Multicolor LED
  • Beeper
Power Description
Input Voltage 24 V DC
Input Current 260 mA
Physical Characteristics
Product Material Polycarbonate
Product Color Gray
Height 12"
Width 12"
Depth 1"
Weight (Approximate) 3.19 lb
Miscellaneous
Additional Information
  • Wiegand interface: 500 feet (152 m)
  • Long read range distance (up to 6' with ProxPass).
  • Autotune allows read range to be maintained within four inches of metal.
  • Wiegand, Clock-and-Data and selectable serial outputs available.
  • "Parking hold" feature allows connection to a loop detector to ensure accurate detection of vehicles in parking lanes.
  • Compatible with all HID cards and tags with formats up to 85 bits.
  • Multicolor LED with internal or host control of the LED and beeper.
  • Two MaxiProx units can operate one meter apart for "HI-LO" (truck and car) installations.
  • Reader supervision signal for CASI-RUSCO panels.
Compatibility ProxCard II Card - up to 24" (60.9 cm)
ISOProx II Card - up to 20" (50.8 cm)
DuoProx II Card - up to 20" (50.8 cm)
Smart ISOProx II - up to 20" (50.8 cm)
Smart DuoProx II Card - up to 20" (50.8 cm)
HID Proximity MIFARE Card - up to 20" (50.8 cm)
ProxCard®Plus Card - up to 13" (33 cm)
ProxKey II Keyfob - up to 17" (43.2 cm)
Microprox Tag - up to 15" (38 cm)
ProxPass Active Vehicle Tag - up to 6' (1.8 m)
Certifications & Standards
  • Canada/UL 294 Listed: Access Control System Units
  • FCC Certification, United States
  • Canada Certification
  • CE Mark, Fifteen EU Countries under the R&TTE
  • Directive (EN60950 - ITE Electrical Safety
  • EN 300 330 - SRD, and ETS 300 683 - EMC)
  • IEC60950
  • ITE CB Scheme Electrical Safety
  • Australia C-Tick Mark
  • New Zealand EMC
  • IP55
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty Lifetime
